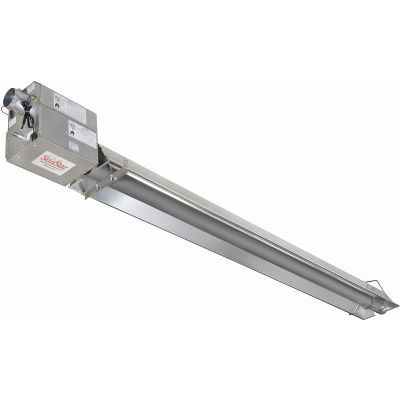

SunStar Propane Infrared Heater Straight Tube Positive Pressure Tough Guy SPS100-30-TG-L5 - 100K BTU

SunStar Propane Infrared Heater Straight Tube Positive Pressure Tough Guy SPS100-30-TG-L5 - 100K BTU

Item #: WBB59765

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,003.99

$167.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,003.99 or save 5% on purchase.

Quantity

Customers Also Viewed

Offers fuel savings up to 50%.

Tough Guy Straight Tube heaters are ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40' of ducting in fresh air or 40' sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.

To help pick out the heater that's right for you, click here to view the Heat Loss Estimating Chart.

Product Specifications

  • BRANDSunStar®
  • LENGTH FEET32
  • WIDTH INCHES13
  • HEIGHT INCHES6-1/4
  • DUCT SIZE INCHES4
  • MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCHFront 66, Rear 20, Ceiling 6, Below 88, End 40
  • MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCHSide 66, Ceiling 6, Below 88, End 40
  • WEIGHT LBS132.8
  • CONSTRUCTIONCast Iron Burner / Aluminum Reflectors
  • TUBE CONSTRUCTIONHeat Treated Aluminized Steel
  • BTU HIGH100000
  • GAS INLET PRESSURE MAX. WATER COLUMN INCHES14
  • GAS INLET PRESSURE MIN. WATER COLUMN INCHES11
  • SHAPEU
  • FUEL TYPEPropane
  • IGNITION TYPEDirect Spark
  • DESCRIPTIONTough Guy
  • TYPEPositive Pressure
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER PART NUMBERSPS100-30-TG-L5
  • MIN. MOUNTING HEIGHT FEET AT HORIZONTAL14
  • MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE13
  • BURNER PRESSURE W.C. INCHES10
  • TUBE LENGTH FEET30
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

See More Questions & Answers

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
