Price: $2,553.00
Customers Also Viewed

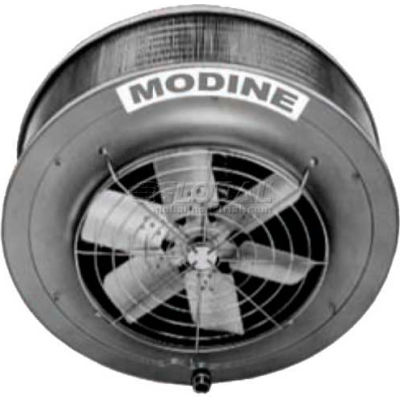

Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air.
Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Product Specifications
- BRANDModine
- HEIGHT INCHES20-1/2
- DIAMETER INCHES43-3/4
- MAXIMUM MOUNTING HEIGHT FEET39
- CONSTRUCTIONSteel
- MANUFACTURER PART#V333SBS01SA
- INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR333000
- OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR260080
- CFM HIGH5980
- FINAL AIR TEMPERATURE °F (STEAM)116
- FINAL AIR TEMPERATURE °F (HOT WATER)103
- VOLTAGE120
- PHASE1
- HORSEPOWER3/4
- HEAT THROW FEET--
- WATER FLOW (GPM)27.1
- POWER CORD TYPEElectric Junction Box
- APPLICATIONAreas With High Ceilings Or Mounted Above Obstructions
- INCLUDESElectric Junction Box, Outlet Fan Guard, Copper Tubing
- TYPEVertical
- LISTING, RATING, CERTIFICATIONETL Listed
- LIMITED WARRANTY YEARS1
- HEAT SPREAD FEET32
- AMPS HIGH8.8
- COLORGray / Green
There are no questions for this product.
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
