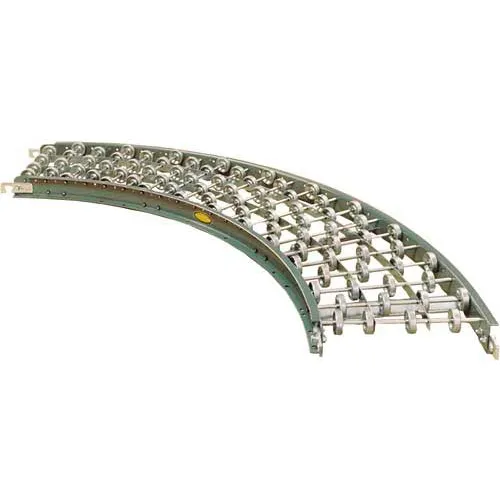

Hytrol® 15"W 90 Degree Curve Skate Wheel Conveyor, Steel

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. 1-15/16"Dia., Pre-lubricated aluminum wheels Construction: 1" x 2-1/2" x ...

Omni Metalcraft STEEL 90 DEGREE CURVED SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 12 gauge galvanized steel channel frame with hook and rod coupling is designed for maximum strength to move the heaviest items. Capacity is 65 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

The Model 12 x 10 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 10 WPF, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 12" and a between frame of 10".

The Model 18 x 32 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 32 WPF, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 18" and a between frame of 16".

Omni Metalcraft ALUMINUM 90 DEGREE CURVED SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. Capacity is 50 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.
