JET

Model # :WBB2331358

MPN #: JT9-354301

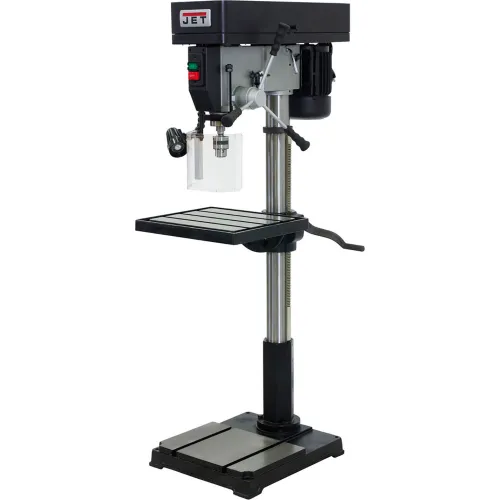

JET® IDP-22 22" Industrial Floor-standing Drill Press 1-1/2HP, 115/230V, 1Ph

Product Description

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Features:

  • For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction
  • Cast Iron table and base
  • Table ground for accuracy
  • LED Machine Lamp
  • Ground Table
  • Spindle Safety Guard
  • Drill Chuck and Key
PRICE
$3,149.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length35 in
Width19 in
Height67 in
Weight364 lbs
Spindle Travel4-13/16 in
Base Work Table21-1/2 x 18-5/16 in
Base Dimensions22-5/8 x 19-7/16 x 3-3/8 in
Drills to Center of Circle22 in
Table Size (L x W)18-5/8 x 16-1/8 in
Chuck Size5/8 in
Column Diameter3-5/8 in
T-Slots Number And Size2 and 5/8 in
Base Slots Number & Size2 and 5/8 in
T-Slot Centers3/4 in
Max Spindle Distance to Table28 in
Spindle Distance To Base48-1/2 in
Distance Spindle To Column10-7/8 in

Product Details

Drilling Capacity Mild Steel1
Motor Voltage115/230 V
Phase1
Manufacturers Part NumberJT9-354301
Motor Horsepower1-1/2 HP
Spindle TaperMT-3
BrandJET
Drilling Capacity Cast Iron1-1/4
Horsepower1-1/2 HP
Number of Spindle Speeds12
Work Table Weight Capacity176 lbs
Style TypeBelt Drive
StyleFloor
Range of Spindle Speeds175-3050 rpm
Prewired115V

Warranty

Warranty2 yr
