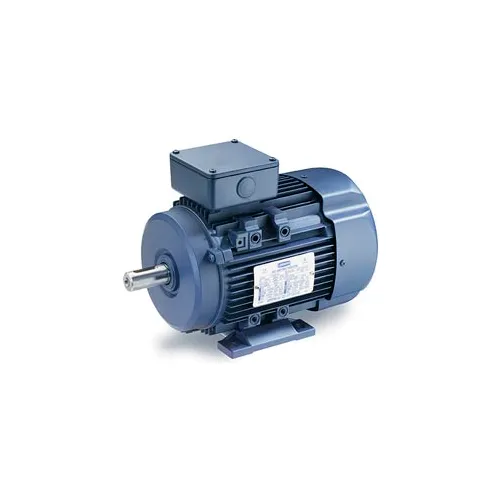

Leeson Motors Motor IEC Metric Motor-15HP, 230/460V, 1765/1460RPM, IP55, B3, 1.15 SF, 91 Eff.

Kit of components to convert 56 through 256T frame stock TEFC motors to fail-safe brakemotors. Kit mounts on fan end of motor. Kits for 56-184T steel frame motors include totally enclosed Stearns AC brake, replacement cast fan cover, shaft extension, fan and hardware. Kits for 213T-256T cast iron frame motors do not include brake, but are designed for Stearns 87,000 series brake. Two 1/2" NPT holes with 18" leads are provided for connections. The BRAKEKIT adds 51/8" to the overall length of 56 and 143-5T frame, and 57/8" to the overall length of 182-184T frame.

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

General Purpose, 3-Phase Motor: 7.5HP, 1765/1460 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 213 Frame, Rigid C Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 22.4-21.6/10.8&24.8/12.4, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 91.7, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3", Shaft Diameter 1 3/8". Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides ...

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
