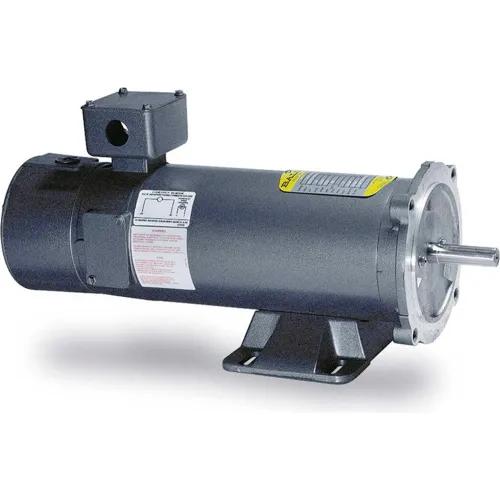

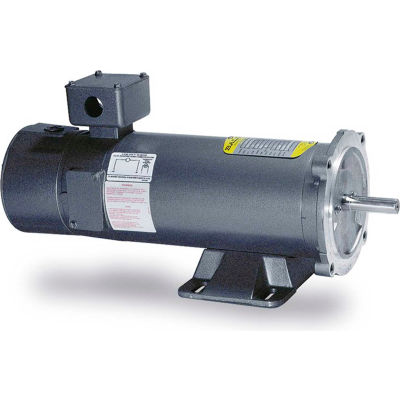

Actual product may differ from image shown
$2,344.00 up to 26% OFF
Price: $1,723.00
$287.17/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Baldor-Reliance Intergral Tach DC Motor, CDPT3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame
Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning.
Features
Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning.
Features
- Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system
- Class F insulation
- 20:1 constant torque speed range with NEMA Type control
- 3300P motors TENV, all others are TEFC
- Conveyors and metering pumps where precise speed regulation is required.
- HORSEPOWER 3/4
- ENCLOSURE TEFC
- BRAND Baldor-Reliance
- MOUNTING C-Face Rigid
- MOTOR RPM 60Hz 1750
- RPM 1750
- VOLTAGE 50
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING 6203
- RPM RANGE 1701-1800
- INSULATION CLASS F
- ARMATURE VOLTAGE 90
- FRAME SIZE 56C
- FIELD VOLTAGE 90
- TYPE Intergral Tach DC Motor
- FL AMPS 7.6
- SPECIFICATION NUMBER 34-6432-3662
- BALDOR CATALOG NUMBER CDPT3440
- DRIVE END BEARING SIZE 6203
