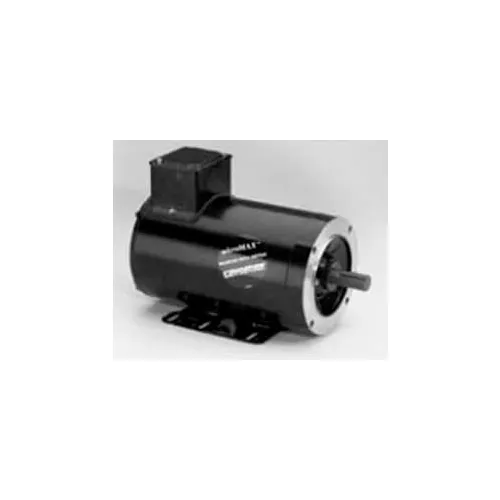

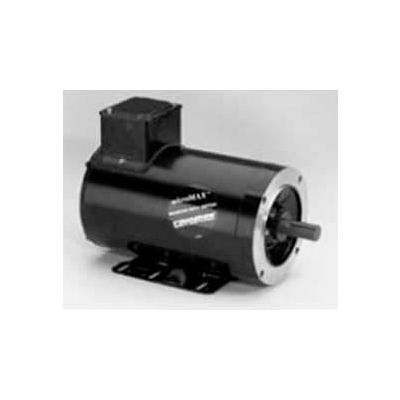

Marathon Motors Inverter Duty Motor, Y370, 182THFR5329, 3HP, 230/460V, 1800RPM, 3PH, 182/145TC, TEFC

Marathon Motors Inverter Duty Motor, Y370, 182THFR5329, 3HP, 230/460V, 1800RPM, 3PH, 182/145TC, TEFC

Item #: WBB869713

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $938.00

$156.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

Marathon Motors Inverter Duty Motor, Y370, 182THFR5329, 3HP, 230/460V, 1800RPM, 3PH, 182/145TC, TEFC

Designed for direct replacement of PMDC or any other variable speed applications where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machine, and printing equipment.

Product Details

  • 60 Hertz kW 2.24 kW
  • Mounting Location C-Face Rigid
  • Bearing Drive End Ball
  • Assembly Required F3
  • RPM 1800 rpm
  • Ambient Temperature 40 °C
  • KVA Code L
  • IP Code 43
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 182/145TC
  • Inverter Speed Range Constant 2:1
  • Horsepower 3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • 60 Hertz Full Load Amps 8.4/4.2 FLA
  • Duty Continuous
  • Enclosure TEFC
  • Phase 3
  • Orientation Horizontal
  • Starting Type Inverter Only
  • Brand Marathon Motors
  • Motor RPM 60 Hertz 1800 rpm
  • Manufacturers Part Number Y370
  • Catalog Number Y370
  • 60 Hertz FLE 85.50 Percent FLE
  • 60 Hertz SF 1 V

Compliance & Certifications

  • NEMA Design A
  • CSA Certified Y
  • UL Recognized Construction
  • CE Approved Y

Weights & Dimensions

  • Drive End Bearing Size 6205
  • Opposite End Bearing Size Ball
  • Weight 52 lbs
