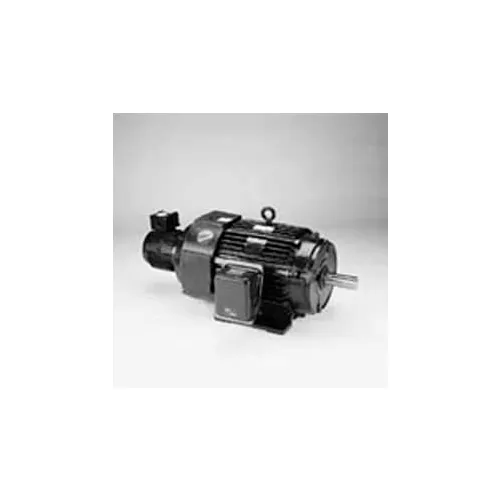

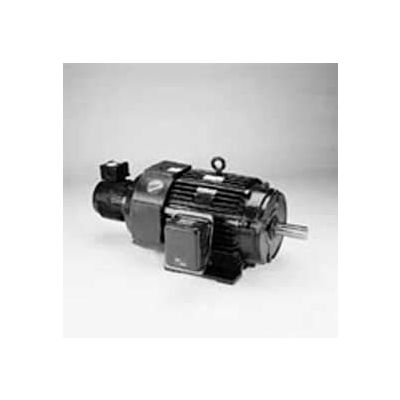

Marathon Motors Inverter Duty Motor, Y569, 284THFPA8028, 25HP, 230/460V, 1800RPM, 3PH, 284T, TEFC

Marathon Motors Inverter Duty Motor, Y569, 284THFPA8028, 25HP, 230/460V, 1800RPM, 3PH, 284T, TEFC

Item #: WBB869917

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,963.00

$493.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Inverter Duty Motor, Y569, 284THFPA8028, 25HP, 230/460V, 1800RPM, 3PH, 284T, TEFC

Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 284T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 230/460
  • THERMAL PROTECTION Thermostats (Normally Closed)
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • UL Recognized Construction and Protector
  • CSA Y
  • CATALOG NO. Y569
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Y569
  • RPM RANGE 1701-1800
  • INSULATION CLASS H
  • INVERTER SPEED RANGE Constant 2000:1
  • OPPOSITE END BEARING SIZE 6210
  • DRIVE END BEARING SIZE 6311
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Inverter Only
  • NEMA DESIGN B
  • CE Y
  • 60 HERTZ FL Eff 91.70 Percent
  • KVA-CODE G
  • is_motor Yes
  • WEIGHT IN LBS. 393
  • 60 HERTZ SF 1
  • 60 HERTZ FL AMPS 63/31.5
  • 60 HERTZ kW 18.7
  • MODEL NUMBER 284THFPA8028
