Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

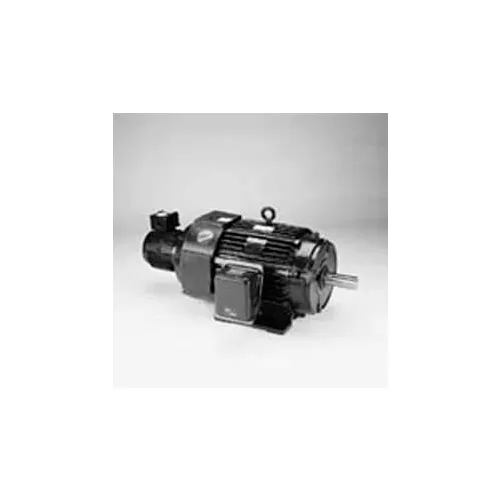

Marathon Motors Inverter Duty Motor, Y531, 449THFS8046, 250HP, 460V, 1800RPM, 3PH, 449T, TEBC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$44,499.00
1
1
Free Shipping Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 2991 lbs |
| Opposite End Bearing Size | Ball |
| Drive End Bearing Size | 6319 |
Product Details
| 60 Hertz kW | 187 kW |
| Catalog Number | Y531 |
| 60 Hertz Full Load Amps | 295 FLA |
| KVA Code | H |
| IP Code | 43 |
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| 60 Hertz FLE | 95.00 Percent FLE |
| Manufacturers Part Number | Y531 |
| Enclosure | TEBC |
| Bearing Drive End | Ball |
| Brand | Marathon Motors |
| 60 Hertz SF | 1 V |
| RPM | 1800 rpm |
| Insulation Class | H |
| Horsepower | 250 HP |
| Orientation | Horizontal |
| Frame | 449T |
| Starting Type | Inverter Only |
| Thermal Protection | Thermostats (Normally Closed) |
| Inverter Speed Range | Constant 2000:1 |
| Enclosure Type | Totally Enclosed |
| Voltage | 460 V |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | A |
| UL | Recognized Construction and Protector |
