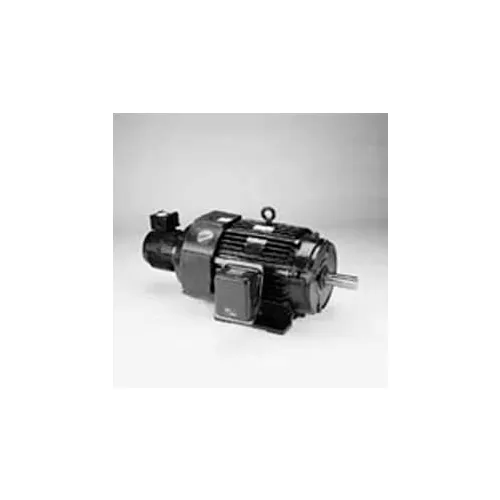

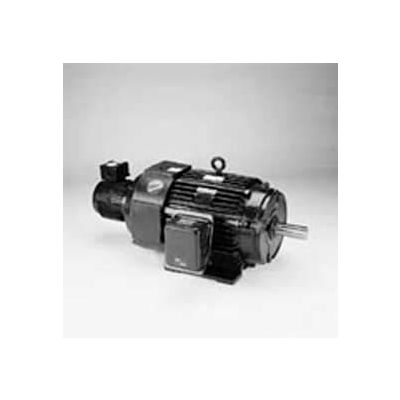

Marathon Motors Inverter Duty Motor, Y598, 256THFNA8038, 20HP, 230/460V, 1800RPM, 3PH, 256TC, TEFC

Marathon Motors Inverter Duty Motor, Y598, 256THFNA8038, 20HP, 230/460V, 1800RPM, 3PH, 256TC, TEFC

Item #: WBB869998

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,475.00

$579.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Marathon Motors Inverter Duty Motor, Y598, 256THFNA8038, 20HP, 230/460V, 1800RPM, 3PH, 256TC, TEFC

Designed for inverter or vector applications where up to a 2000:1 constant torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

Product Details

  • 60 Hertz kW 14.9 kW
  • Mounting Location C-Face Rigid
  • Bearing Drive End Ball
  • Assembly Required F1 (F2 Modification Available)
  • RPM 1800 rpm
  • Ambient Temperature 40 °C
  • KVA Code J
  • IP Code 43
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 256TC
  • Inverter Speed Range Constant 2000:1
  • Horsepower 20 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • 60 Hertz Full Load Amps 52/26 FLA
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Orientation Horizontal
  • Starting Type Inverter Only
  • Brand Marathon Motors
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Manufacturers Part Number Y598
  • Catalog Number Y598
  • 60 Hertz SF 1 V
  • 60 Hertz FLE 91.00 Percent FLE

Compliance & Certifications

  • NEMA Design B
  • CSA Certified Y
  • UL Recognized Construction and Protector
  • CE Approved Y

Weights & Dimensions

  • Drive End Bearing Size 6309
  • Opposite End Bearing Size Ball
  • Weight 377 lbs
