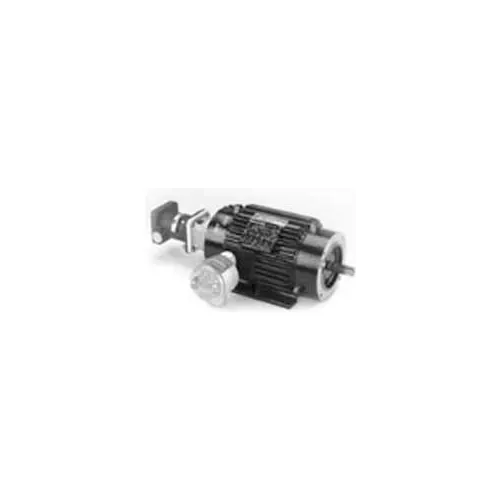

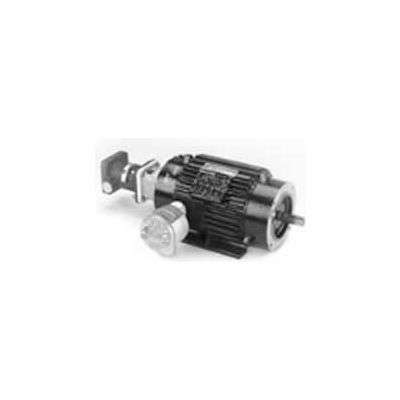

Marathon Motors Inverter Duty Motor, Y979, 143THEN8034, 2HP, 230/460V, 1800RPM, 3PH, 143TC, EPNV

Marathon Motors Inverter Duty Motor, Y979, 143THEN8034, 2HP, 230/460V, 1800RPM, 3PH, 143TC, EPNV

Item #: WBB869696

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,907.00

$651.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Marathon Motors Inverter Duty Motor, Y979, 143THEN8034, 2HP, 230/460V, 1800RPM, 3PH, 143TC, EPNV

Designed for industrial applications with Vector Drives where up to a 2000:1 constant torque speed range is required. Used in dirty, dusty or caustic environments where cast iron construction is required, and installed in hazardous environments.

  • HORSEPOWER 2
  • ENCLOSURE EPNV
  • FRAME 143TC
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 230/460
  • THERMAL PROTECTION Thermostats (Normally Closed)
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Explosion Proof
  • OPPOSITE END BEARING Ball
  • UL UL Listed
  • CATALOG NO. Y979
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Y979
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION EXP PROOF CL I GR C&D CL II GR F&G T3C
  • INVERTER SPEED RANGE Constant 2000:1
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Inverter Only
  • NEMA DESIGN A
  • CE N
  • 60 HERTZ FL Eff 85.50 Percent
  • KVA-CODE N
  • is_motor Yes
  • WEIGHT IN LBS. 90
  • 60 HERTZ SF 1
  • 60 HERTZ FL AMPS 5.8/2.9
  • 60 HERTZ kW 1.49
  • MODEL NUMBER 143THEN8034
