Cejn

Model # :WBB661726

MPN #: 10-664-6401

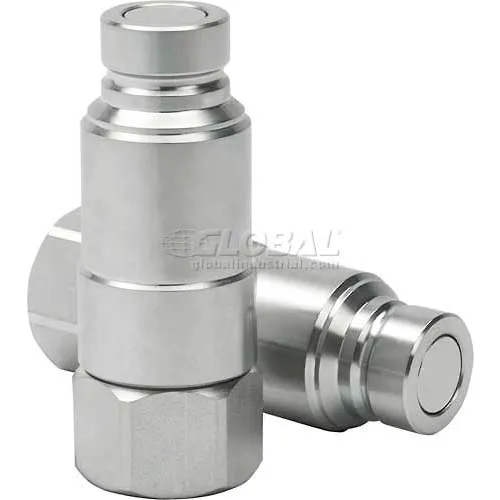

Cejn® Pressure Eliminator Nipple Hydraulic Flat Face (ISO 16028) 5/8" Body Size 3/4" Female NPT

Product Description
Cejn® ISO 16028 Pressure Eliminator Nipple, 5/8" Body Size, 3/4" NPT Female

Cejn® Series 664 is a Flat-Face quick-connect nipple with a built-in pressure eliminator. The nipple is according to and exceeds the demands in the ISO 16028 Standard for low and medium pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. The pressure eliminator allows for connection with residual/ trapped pressure on the nipple side. The nipple connects with Series 665 couplings. *Flat-Face Design *Connection under Pressure *One-hand Operation

PRICE
$82.95

Min. purchase quantity is 2
2
2
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Nominal Flow Diameter5/8 in
Body Size5/8 in

Product Details

InterchangeISO 16028 (5/8)
TypeHydraulic QC
Series664
Connection Configuration3/4 Female NPT
Gallons per Minute30.6 gal/min
Temperature Range-22 +212 °F
Seal MaterialNBR
IncludesBuilt-In Pressure Eliminator
MaterialZinc-Nickel Plated Steel
Min Burst Pressure17404 psi
DescriptionFlat-Face Quick Connect Nipple
Max Operating PSI5801 psi
Manufacturers Part Number10-664-6401
PSI5801 psi
Respirator Connection Type3/4 Female NPT
BrandCejn

Compliance & Certifications

CertificationsISO 16028 (5/8)
