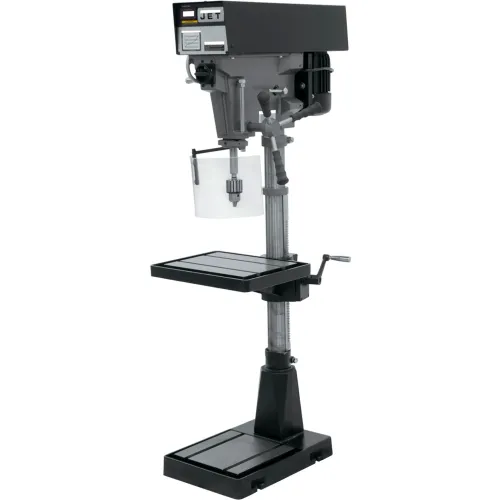

JET® J-A5816 Variable Speed Floor Model Drill Press, 1 HP, 1-Phase, 115/230V

Product Description

These JET® Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.

Features:
  • 1/2" Drill chuck and arbor included
  • 3" column diameter for maximum head support
  • 6" stroke for deep hole application
  • Full bearing support on quill for maximum spindle stiffness
  • Handwheel speed adjustment of 400 to 5,000 RPM
  • Large 2-1/4" quill for greater accuracy


PRICE
$3,359.00

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length30
Width20 in
Height71 in
Weight426 lbs
Size15 in
Spindle Travel6 in
Base Dimensions20-7/16 x 14-3/16 in
Drills to Center of Circle15 in
Quill Diameter2-1/4 in
Table Size (L x W)15 x 18 in
Column Diameter3 in
T-Slots Number And Size2 & 1/2 in
Drilling Capacity1/2 in
Spindle Distance To Base44-1/2 in
Distance Spindle To Column7-1/2 in

Product Details

Drilling Capacity Mild Steel1/2
Motor Voltage115/230 V
Phase1
Manufacturers Part NumberJT9-354550-2
Motor Horsepower1 HP
Spindle TaperMT-2
BrandJET
TypeFloor Model Drill Press
Drilling Capacity Cast Iron5/8
Number of Spindle SpeedsVariable
Work Table Weight Capacity90 lbs
StyleFloor Drill Press
Range of Spindle Speeds400 - 5,000 rpm
DescriptionVariable Speed Floor Model Drill Press

Warranty

Warranty2 yr
