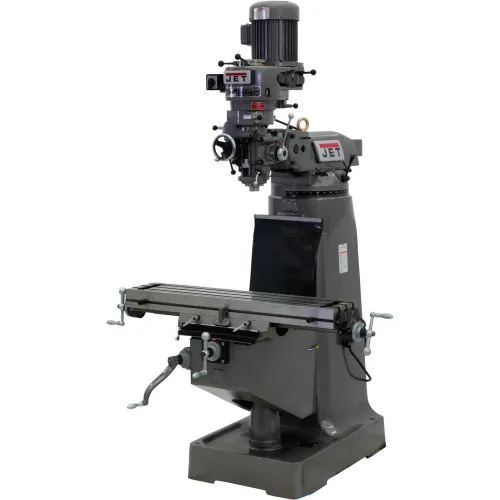

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features:
- Certified Meehanite® Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Precision hardened and ground ways
- Standard Equipment
- Internal coolant tank built into base for use with coolant system (coolant pump not included)
- Tolerance test sheet included
- One shot lubrication system
- Way covers
- Draw bar
- Tool box with tools
- Digital Readout: Newall DP500
- Spindle Taper (In. x TPI): R-8
- Table Size (L x W): 9" x 42"
- Quill Diameter: 3-3/8"
- Number of Spindle Speeds: 16
- Range of Spindle Speeds: 80 - 5,440 RPM
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Spindle Travel: 5"
- Head Movement: 90° R & L, 45° F & B
- Max Distance Spindle to Table: 17-1/2"
- Distance Spindle to Column (Max.): 19"
- Distance Spindle to Column (Min.): 4-1/2"
- Collet Capacity: 1/8" - 7/8"
- Table Longitudinal Travel: 23-7/8"
- Table Longitudinal Travel w/ Powerfeed: 20-2/7"
- Table Cross Travel: 12-1/2"
- T-Slots Number and Size: 3 and 5/8"
- T-Slot Centers: 2-1/2"
- Work Table Weight Capacity: 550 Lbs.
- Travel of Knee: 14-1/2"
- Travel of Ram: 13-3/8"
- Motor: 2 HP, 230V, 3 Ph
- Overall Dimensions (L x W x H): 57" x 64" x 82"
- Weight: 2,200 Lbs.
