JET

Model # :WBB3169400

MPN #: JT9-690114-2

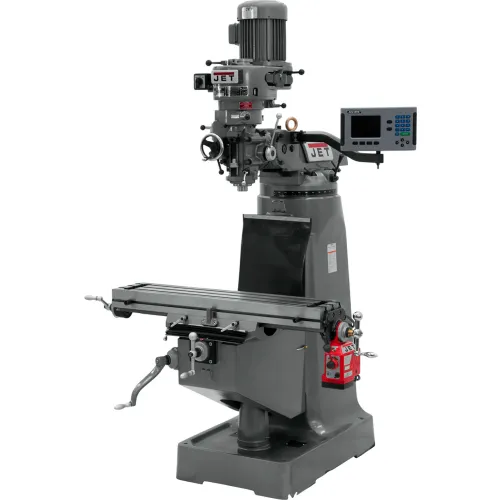

JET® JTM-2 Milling Machine with Acu-Rite 203 DRO & X-Axis Powerfeed, 2 HP, 115/230V

Product Description

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET® precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET® Two Year Warranty.

Features:
  • Certified Meehanite® castings
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included


PRICE
$20,059.00

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length57
Width64 in
Height82 in
Weight2200 lbs
Table Size (L x W)9 x 42 in
Collet Capacity1/8 - 7/8 in
Quill Diameter3-3/8 in
Table Longitudinal Travel23-7/8 in
Table Cross Travel12-1/2 in

Product Details

PowerfeedX-Axis
Number of Spindle Speeds8
Style TypeStep Pulley R8
Motor Voltage115/230 V
DROAcu-Rite 203
Range of Spindle Speeds"80 - 2,720" rpm
Phase1
Manufacturers Part NumberJT9-690114-2
Prewired230
Motor Horsepower2 HP
BrandJET

Warranty

Warranty2 yr
