JET

Model # :WBB2836510

MPN #: JT9-722150

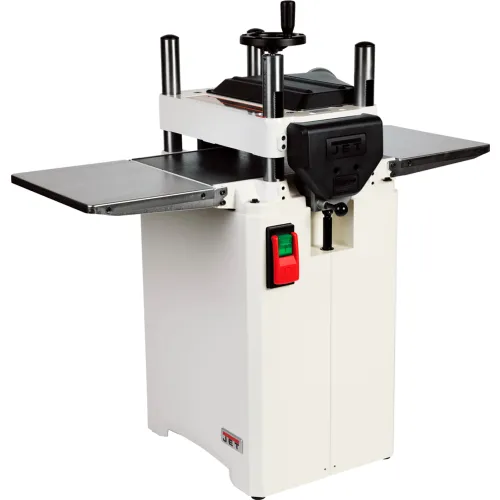

JET® JWP-15B 15" CS Planer with Straight Knives

Product Description

For projects that require board thickness to be beyond exact, the New JET 15" Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two speed gear box to adjust your feed rate for a better finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET's angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop's dust collection system.

Features:
  • Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
  • Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
  • Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
  • Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
  • Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
  • Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience
  • Large hand wheel with positive gear drive easily moves the head to the desired board thickness
  • Magnetic Switch with green safety light illuminates when powered
  • 4" Dust Port hooks up to dust management system and helps keep shop clean


PRICE
$2,799.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Max Cutting Depth3/16 in
Max Planing Width15 in
Cutterhead Diameter2-5/8 in
Min Planing Length5-39/64 in
Table Size (L x W)21-1/2 X 15 in
Max Full Width Depth of Cut1/8 in
Feed Rate16/20 ft/min
Max Planing Thickness6 in
Dust Port Diameter4 in

Product Details

Dust Collection Mininum CFM Required600 CFM
Prewired Voltage230 V
Phase1
Manufacturers Part NumberJT9-722150
Motor Horsepower3.0 HP
Cutterhead Speed5200 rpm
BrandJET
TypePlaner
Number of Knives or Inserts3
Amperage15 A
Cuts per Minute15600
StyleFloorstanding
Type of CutterheadKnives
Voltage230 V
Package Quantity3

Warranty

Warranty5 yr
