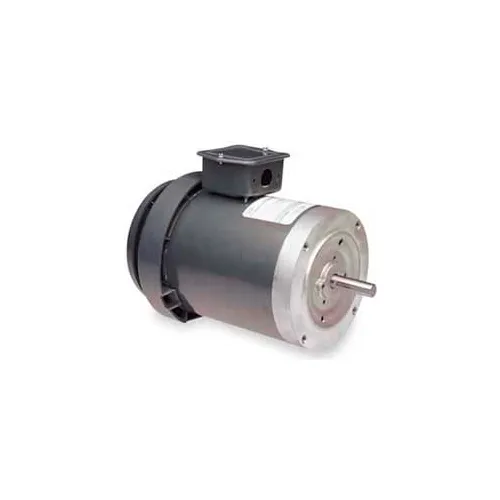

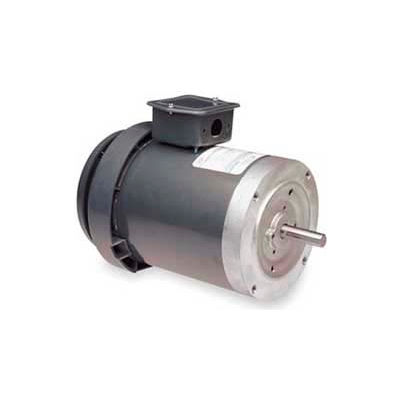

Marathon Motors K1438, 1 1/2HP, 460/380V, 1725/1425RPM, 3PH, TEFC, 56C FR
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size Ball
- Weight 29
Product Details
- Mounting Location C-Face Footless
- Bearing Drive End 6203
- RPM 1725/1425 rpm
- Ambient Temperature 40 °C
- KVA Code K
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 460 V
- Frame 56C
- Service Factor 1
- Horsepower 1-1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Enclosure TEFC
- Phase 3
- Orientation Vertical Shaft Down
- Starting Type Squirrel Cage Induction
- Full Load Efficiency 0
- Brand Marathon Motors
- Full Load Amps 2.4/2.7 FLA
- Motor RPM 60 Hertz 1725 rpm
- Thermal Protection Automatic
- Motor RPM 50 Hertz 1425 rpm
- Manufacturers Part Number K1438
- Catalog Number K1438
Compliance & Certifications
- CSA Certified Y
- UL Y
