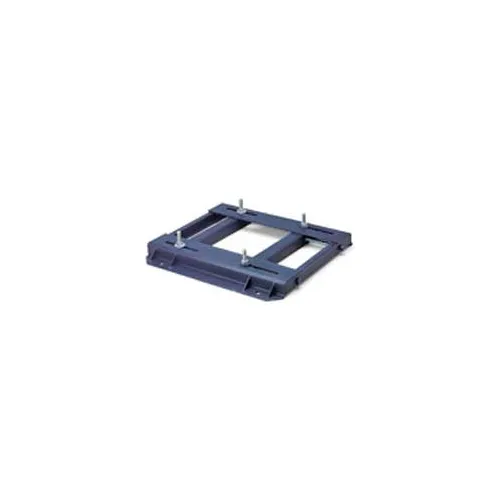

Heavy gauge steel mounting bases simplify the installation of motors and make the tensioning, maintenance and replacement of belts a simple efficient task. Fabricated from sheet or steel plate, then primed and finished in a gray rust and corrosion resistant oven-baked finish. Gussets and reinforcing channels on larger units and continuous seam welding on all units give these bases strength and durability for a long life. A single (215T frame and smaller) or double (NEMA 254T frame and larger) zinc plated adjusting screw is provided. Motor mounting bolts are included.
Share
Spec Sheet
Leeson Motors Adjustable Motor Base Nema 56 - Min Qty 2
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$88.95
2
2
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 10-5/8 in |
| Width | 6-1/2 in |
| Height | 1-1/8 in |
| Weight | 3 lbs |
| Motor Frame Size | 56 |
Product Details
| Type | Adjustable Motor Base |
| Applications | Dependant Upon Motor Application |
| Frame | 56 |
| Brand | Leeson |
