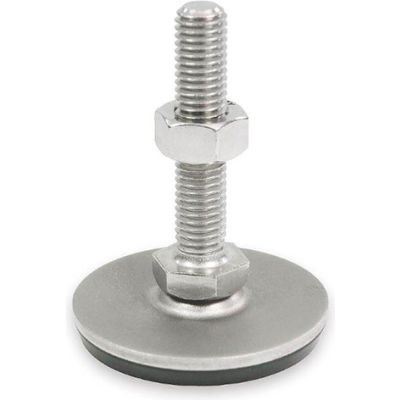

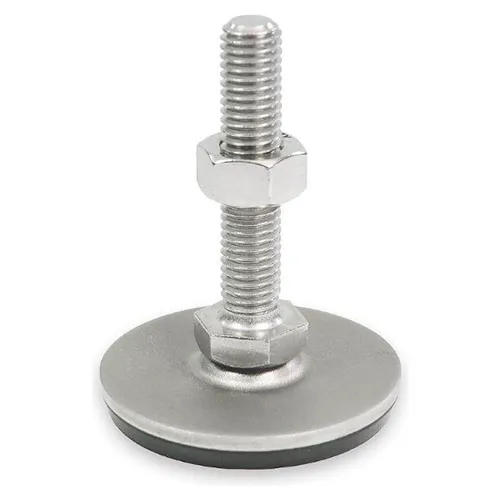

Leveling Foot - Threaded - 4500 Lbs. Capacity - 3.15" Base Dia. - J.W. Winco 41-80-1/2X13-125-D3-SK
GN 41 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
GN 41 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.
- BASE DIAMETER 3.15"
- BASE HEIGHT 0.12"
- BRAND J.W. Winco
- CONSTRUCTION Stainless Steel
- DESCRIPTION Leveling Foot w/ Vulcanized Rubber Underlay
- MANUFACTURERS PART NUMBER 41-80-1/2X13-125-D3-SK
- TYPE Threaded
- STUD LENGTH 4.92"
- COUNTRY OF ORIGIN Import
- SERIES GN41
- LOAD CAPACITY (LBS.) 4500 Lbs.
- THREAD 1/2-13
- LOAD CAPACITY RANGE (LBS.) 2500 - 5000 Lbs.
- UNIT OF MEASUREMENT Inch (Imperial)
- THREADED STUD & HEX NUT Stainless Steel
