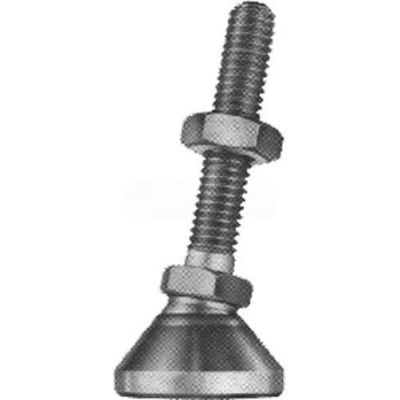

Leveling Mount, 1-8 x 6" Thread Length , 4" Base Dia, 7.88"H, 20000 Lbs. Load Cap - Made In USA

Leveling Mount, 1-8 x 6" Thread Length , 4" Base Dia, 7.88"H, 20000 Lbs. Load Cap - Made In USA

Item #: WBB831858

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $45.95

Save $2.30 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Leveling Mount, 1-8 x 6" Thread Length , 4" Base Dia, 7.88"H, 20000 Lbs. Load Cap

LPST leveling mounts swivel 10-15° to all sides of the centerline to adjust to uneven surfaces used for leveling machine tools, electronic racks, benches, etc. Large diameter pad design assures solid support. Coupling nut is not recommended to use for installation. Use nut on tapped hole of 1 - 1 1/2 times the thread diameter being used. To insure proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount. Maximum load ratings for leveling mounts with elastomer pad are based on a calculation of 40% distortion to the elastomer pad. This insures the proper application requirements when using the bore with the non-skid elastomer pad. For certain minimum quantities, modifications such as lag bolt holes and other versions of plating are available upon request. Heat resistance for Delrin base mounts: Continuous operating temperature--82°C (180°F); melting point--175°C (347°F).

  • BASE DIAMETER 4.00"
  • BRAND J.W. Winco
  • CONSTRUCTION Yellow Zinc Plated Steel
  • MANUFACTURERS PART NUMBER 12T6LIT
  • STUD LENGTH 6.00"
  • HEIGHT 7.88"
  • COUNTRY OF ORIGIN Made in USA
  • LOAD CAPACITY (LBS.) 20000 Lbs.
  • THREAD 1-8
  • LOAD CAPACITY RANGE (LBS.) 5000+ Lbs.
  • UNIT OF MEASUREMENT Inch (Imperial)
  • THREADED STUD & HEX NUT Zinc Plated Steel
