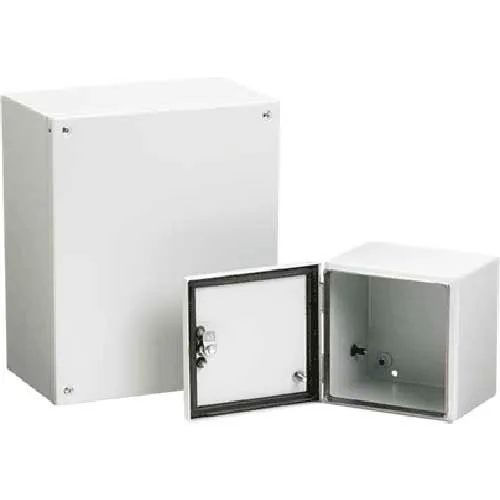

Hoffman LHC302515EMC INLINE™ Screw Cover EMC Encl, Type 1, 300x250x150mm

Hoffman LHC302515EMC INLINE™ Screw Cover EMC Encl, Type 1, 300x250x150mm

Item #: WBB1609707

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $579.00

$96.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Hoffman A241206LP Wall Mount, Type 12/13 Encl, 24.00x12.00x6.00, Steel/paint

Hoffman A241206LP Wall Mount, Type 12/13 Encl, 24.00x12.00x6.00, Steel/paint

Hoffman A36H30DLP Wall Mount, Type 4 Encl, 36.00x30.00x12.00, Steel/Gray

Hoffman A36H30DLP Wall Mount, Type 4 Encl, 36.00x30.00x12.00, Steel/Gray

Hoffman A10086CH, Continuous Hinge W/Clamps, Type 12, 10.00X8.00X6.00, Steel/Gray

Hoffman A10086CH, Continuous Hinge W/Clamps, Type 12, 10.00X8.00X6.00, Steel/Gray

Hoffman A606CH, Continuous Hinge W/Clamps, Type 12, 6.00X6.00X4.00, Steel/Gray

Hoffman A606CH, Continuous Hinge W/Clamps, Type 12, 6.00X6.00X4.00, Steel/Gray

Hoffman CP525512, CONCEPT™ HMI Encl W/Black Trim, Type 4, 525x550x120mm

Hoffman CP525512, CONCEPT™ HMI Encl W/Black Trim, Type 4, 525x550x120mm

Hoffman CSD30248LGEMC, Concept™ Wall-Mount Emc Encl, 30.00X24.00X8.00

Hoffman CSD30248LGEMC, Concept™ Wall-Mount Emc Encl, 30.00X24.00X8.00

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Hoffman LHC302515EMC INLINE™ Screw Cover EMC Encl, Type 1, 300x250x150mm

INLINE™ EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance.

Features:
  • 16 gauge (1.4-mm) steel
  • Seams continuously welded and ground smooth
  • External formed body flange
  • Large perimeter body opening
  • Fastening holes in back of body for direct mounting or optional external mounting brackets
  • Bonding provision (M6) on cover; grounding stud (M6) on body
  • Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
  • Plated interior surfaces for gasket contact areas and conduit entries
  • Furnished hardware kit consists of panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
  • Shielding effectiveness greater than 50 dB at 1 GHz INLINE EMC Screw-Cover Enclosures
  • Captivated cover screws with sealing bushings
  • Integral gasket compression stops INLINE EMC Hinged-Door Enclosures
  • 180-degree door opening
  • Removable solid door with two barrel hinges
  • Self-grounding quarter-turn latch

Weights & Dimensions

  • A x B x C 11.81 x 9.84 x 5.91 in
  • Mounting G x H 11.10 x 7.28 in
  • Panel Size (D x E) 11.06 x 9.09 in

Product Details

  • Steel Panel LP3025
  • Type 1
  • Brand Hoffman
  • Description Screw Cover Emc Enclosures, Type 4
  • Material Steel
  • Conductive Steel Panel LP3025G
  • Manufacturers Part Number LHC302515EMC
  • Color Family Gray
