Omni Metalcraft 18"W Lineshaft Powered Drive Roller Conveyor, 3'L, Variable Speed, 1HP, 115V

Omni Metalcraft Lineshaft 3' Drive Conveyor LSDS1.9X16-22-3-3-F60-0.75-CD - 1.9" Dia. 22"BF, 3/4 HP Lineshaft Driven Live Roller Conveyors are a unique concept in powered conveyors.The basic design employs rollers which are independently driven by a urethane belt from a common drive shaft. The general operation of the conveyor is a driveshaft that runs the full length of the conveyor and transmits power to the rollers via a drive spool and belt. When back pressure is applied to the conveyed product, the spools driving the rollers under the product will slip on the driveshaft allowing the ...

Omni Metalcraft Lineshaft 45 Deg. Slave Curve LSSC1.9X16-32-3-45-T - 2-1/2"-1-11/16" Dia. - 32"BF Lineshaft Driven Live Roller Conveyors are a unique concept in powered conveyors.The basic design employs rollers which are independently driven by a urethane belt from a common drive shaft. The general operation of the conveyor is a driveshaft that runs the full length of the conveyor and transmits power to the rollers via a drive spool and belt. When back pressure is applied to the conveyed product, the spools driving the rollers under the product will slip on the driveshaft allowing the ...

Lineshaft Driven Live Roller Conveyors are a unique concept in powered conveyors.The basic design employs rollers which are independently driven by a urethane belt from a common drive shaft. The general operation of the conveyor is a driveshaft that runs the full length of the conveyor and transmits power to the rollers via a drive spool and belt. When back pressure is applied to the conveyed product, the spools driving the rollers under the product will slip on the driveshaft allowing the product to accumulate with a minimum amount of back pressure. Lineshaft Conveyors are an optimum ...

Omni Metalcraft POWERED BELT CURVE CONVEYOR Powered Turn Belt Curve Conveyors transport products of various sizes and shapes while maintaining proper product orientation. Durable black PVC belt is used in light duty package handling industries, as well as rough, abrasive environments. 10 gauge rolled, welded, and painted steel frame and slider bed. Standard 60 (± 5) FPM non-reversing conveying speed (measured at centerline radius). Includes permanent leg supports for 34" to 38" conveying surface height. Tapered and lagged drive and tail pulleys. Sealed and pre-lubricated mounted bearings. ...

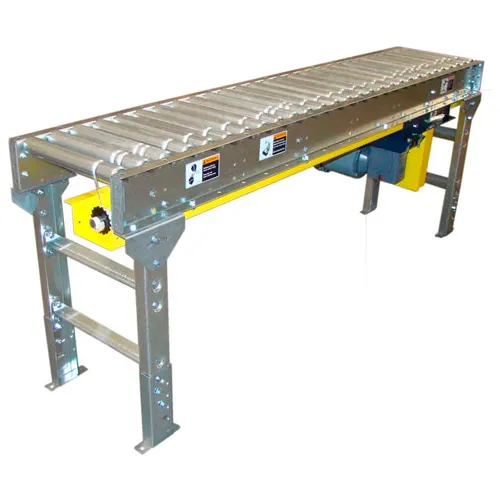

Omni Metalcraft Chain Driven Live Roller Conveyor, 1.9" Dia. Rollers, 1/2 HP - 25'L x 36"W Chain Driven Live Roller Conveyor CDLR1.9X9-36-4-25-F30-0.5 is 25' Long, 36" Effective Width, 1.9" Dia. x 9 Ga. Steel Rollers on 4" centers. Rollers High on Idler Side, Conveyor speed up to 30 Feet Per Minute, 1/2 HP, 208-230/460 VAC - 3 Phase, Drive mounted side high, (6) Supports for 36" Top of Roller Features: Top of Roller Height: 36" +/- 3" Capacity Lbs. Per Roller: 203 Capacity Lbs. Per Foot: 238
