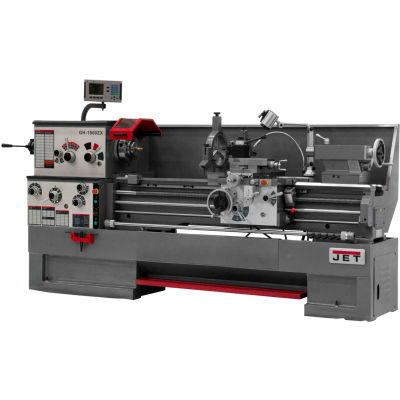

GH-1860ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

GH-1860ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

Item #: WBB1806212

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • SWISS CUT 8050 Cutting Fluid - 1 Gallon Container

    $35.95

  • JET® 321520 TAK-GHW Taper Attachment Kit

    $2,799.00

  • Bison Wrench for Scroll Chuck, 10" & 1 2" Chuck, square size .551"

    $59.95

Original Price: $29,999.00

Promotional Price: $26,999.10

$4,499.85 / month suggested monthly payments with 6 mo. special financing on the purchase of $26,999.10 or save 5% on purchase.

Quantity

Customers Also Viewed

GH-1860ZX With Newall DP700 DRO With Taper Attachment and Collet Closer

    The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

  • 3-1/8" bore spindle is supported by two tapered and one ball bearings
  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
  • Removable gap allows large diameter work
  • Five position automatic carriage stop increases productivity
  • Attractive chrome levers, dials and knobs complete this impressive package
  • Meehanite Castings
  • 10" 3-jaw scroll chuck with top reversing jaws
  • 16" face plate
  • Four-way tool post
  • Follow rest
  • Large capacity steady rest
  • Fully integrated coolant system
  • Full length splash guard and coolant return
  • Large easy to use foot brake
  • Articulating halogen work lamp
  • Centrally located controls with jog button
  • Threading dial
  • Mounting pads and levelers
  • Live center
  • Tolerance Test Certificate
  • Tool box and adjusting tools


Product Specifications

  • DISTANCE BETWEEN CENTERS (IN.)60"
  • LENGTH OF GAP (IN.)12-1/4
  • NUMBER OF SPINDLE SPEEDS12
  • RANGE OF SPINDLE SPEEDS (RPM)25 - 1800
  • SPINDLE BORE (IN.)3.125"
  • SPINDLE MOUNTD1-8
  • SPINDLE TAPER (WITH SLEEVE)MT-7 (MT-5)
  • SWING OVER BED (IN.)18
  • SWING OVER CROSS SLIDE (IN.)11"
  • SWING THROUGH GAP (IN.)27-1/2
  • BRANDJET®
  • DRONewall DP700
  • COLLET CLOSERYes
  • RANGE OF CROSS FEEDS (IPR).0015 - .0913
  • SIZE18 x 60
  • ACCESSORIESTaper Attachment
  • MANUFACTURERS PART NUMBER321557
  • NUMBER OF LONGITUDINAL AND CROSS FEED RATES122
  • MOTOR PHASE3 Ph
  • MOTOR HORSEPOWER7.5 HP
