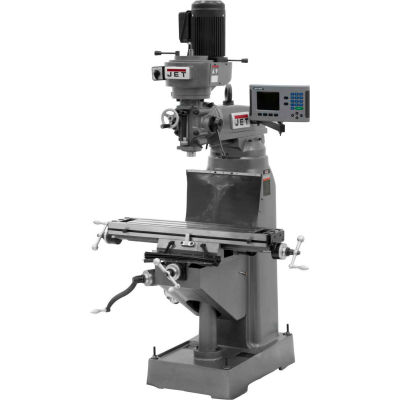

JVM-836-3 Mill, ACU-RITE 200S DRO Installed

JVM-836-3 Mill, ACU-RITE 200S DRO Installed

Item #: WBB231083

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • 1/2" Dia., 1/2" Shank, 1" LOC, 3" OAL, 4 Flute Solid Carbide Ball Single End Mill, AlTiN

    $66.95

  • 1/2" Dia., 1/2" Shank, 2" LOC, 4" OAL, 4 Flute Solid Carbide Single End Mill, AlTiN

    $73.49

  • 3/4" Dia., 3/4" LOC, 3" OAL, 4 Flute Cobalt Single End Fine Roughing End Mill, TiCN

    $80.99

$13,020.00 up to 18% OFF

Price: $10,679.00

$1,779.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $10,679.00 or save 5% on purchase.

Quantity

Customers Also Viewed

JVM-836-3 Mill, ACU-RITE 200S DRO Installed

The precision bored and honed Milling head, coupled with the hardened and ground 8ö x 36ö table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty

  • Precision bored and honed Milling head
  • Large diameter quill is chromed
  • High precision spindle bearings
  • Over 10" of front to back ram travel
  • Locks on all movable surfaces
  • Hardened and ground precision table
  • Head tilts left or right
  • Graduated scale on column
  • Precision ground dovetail ways
  • One shot lubrication system
  • Way covers
  • Draw bar
  • Tool box and tools


Product Specifications

  • NUMBER OF SPINDLE SPEEDS10
  • RANGE OF SPINDLE SPEEDS (RPM)120 - 1550
  • SPINDLE TAPERR-8
  • TABLE SIZE INCHES7-7/8 x 35-3/4
  • BRANDJET®
  • DROAcu-Rite 200S
  • POWERFEEDNone
  • LIMITED WARRANTY2-Year Warranty
  • QUILL DIAMETER (IN.)3-3/8
  • HEAD MOVEMENT (DEG.)90° R & L
  • TABLE LONGITUDINAL TRAVEL (IN.)22-1/4
  • DISTANCE SPINDLE TO COLUMN (IN.)15-1/4
  • COLLET CAPACITY1/8 - 7/8
  • TABLE CROSS TRAVEL (IN.)9-1/2
  • WORK TABLE WEIGHT CAPACITY (LBS.)500
  • T-SLOTS CENTERS (IN.)2-1/2
  • TRAVEL OF RAM (IN.)10-1/2
  • TRAVEL OF KNEE (IN.)14
  • QUILL DOWN FEED RATES (IPR)-
  • MANUFACTURERS PART NUMBER690190
  • T-SLOTS NUMBER AND SIZE (IN.)3 and 5/8
  • MOTOR PHASEThree
  • MOTOR HORSEPOWER1-1/2
  • MOTOR VOLTAGE230
