Federal Signal

Model # :WBB171225

MPN #: MSL3L-120RAG

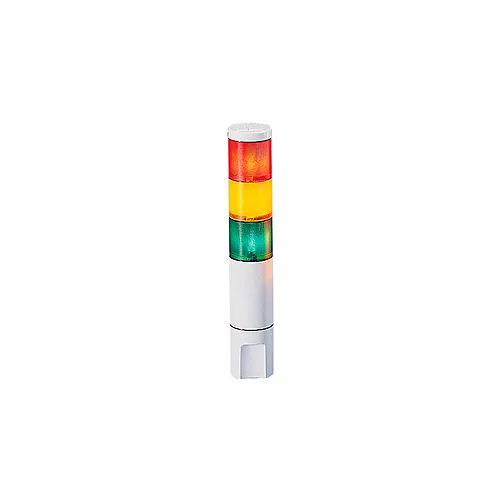

Federal Signal MSL3L-120RAG MicroStat, LED light, 120VAC, Red-Amber-Green

Product Description
The Federal Signal MicroStat® is a compact, Type 4X status indicator, Type 1. Ideal for OEM applications, the MicroStat comes pre-assembled with 3 high light units in Red, Amber, Green. O-rings between each segment provide a water-tight and dust-tight seal. The MSL3 comes in 120VAC. The base of each light can be surface or pipe mounted (3/4-inch NPT). The lenses lock together and snap apart with a simple twisting motion, allowing for easy lamp changes and quick lens resequencing. A rugged vibration-resistant, thick-filament wedge lamp fills each lens with light, providing excellent optical performance. Wire connections are made through a 2-piece terminal block. The MicroStat is designed to work with PLC outputs including Triacs. This lamp, made of surface mounted LEDs, plugs directly into the same socket as the standard lamp. An optional sound module can be installed in the top position of any MicroStat. 5 Year Limited Warranty.
PRICE
$619.00

1
1
Ships in 20 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height12-1/2 in
Weight0.7 lbs

Product Details

Lamp Life Hours7000 hr
Operating Temperature32F to 104F
Mounting LocationPipe, Surface
Voltage120 V
Made in the USAYes
Light SourceLED
Package Quantity1
Manufacturers Part NumberMSL3L-120RAG
Operating Current0.6 mA
LED Color FamilyWhite, Red, Amber, Green
BrandFederal Signal
