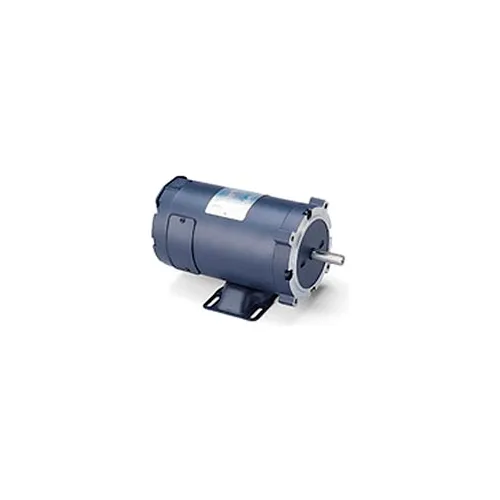

Leeson Motors DC Motor-1/2HP, 12V, 1800RPM, TENV, Rigid C

High Voltage permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities. Mechanical / Electrical Features: Brush holder design provides easy access to brushes Large oversized brushes assure long brush life Removable Bolt-on base NEMA C-face designs 115 or 230 volt input power ratings - 90 / 180 volt output Capable of Dynamic braking PWM or SCR type controller rated High Starting Torque

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

Baldor-Reliance Motor, .25HP,1800RPM,DC,56C,3416P,TENV,F1 Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.

DC Motor: 1HP, 1750 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, S56C Frame, Rigid C, 180V, Continuous duty. High Voltage permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities. Features: Brush holder design provides easy access to brushes Large oversized brushes assure long brush life Removable Bolt-on base NEMA C-face designs Capable of Dynamic braking PWM or SCR type ...

Baldor-Reliance Motor, .5HP,1800RPM,DC,56C,3424P,TENV,F1 Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.
