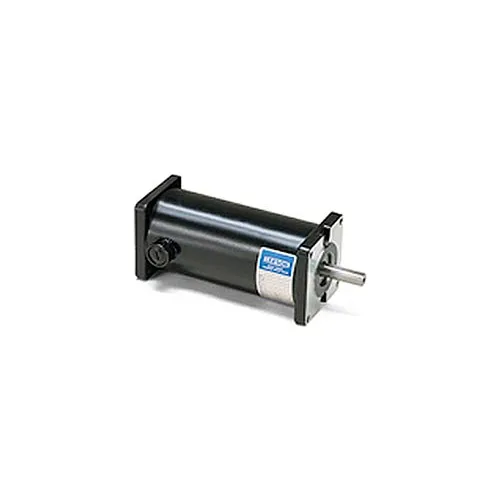

Leeson Motors DC Motor-1/4HP, 90V, 3500RPM, TENV, Sq. flange

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

DC Motor: 1 1/2HP, 1800 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, WMS56CZ Frame, Rigid C, 24V, Continuous duty. Suitable for applications having battery or solar powered operations, or generator supplied low voltage DC. These motors are high torque, continuous duty designs. Easy Access Brushes for servicing Large over-sized brushes assure longer brush life Removable stamp steel base Permanently lubricated sealed ball bearings High starting Torque Linear speed/torque over entire speed range Capable of Dynamic braking Two-lead connections for simple rotation reversing Click here to ...

General Specifications: These Metric motors are built to IEC 34-1 electrical and mechanical specifications. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to field modified to B3 rigid base mounted construction using conversion kits. Electrical and Mechanical Features: Terminal Board provided for connections Fasteners are Metric Tachometer mounting kits available

DC Motor: 1HP, 1750 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, S56C Frame, Rigid C, 180V, Continuous duty. High Voltage permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities. Features: Brush holder design provides easy access to brushes Large oversized brushes assure long brush life Removable Bolt-on base NEMA C-face designs Capable of Dynamic braking PWM or SCR type ...

High Voltage permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities. Mechanical / Electrical Features: Brush holder design provides easy access to brushes Large oversized brushes assure long brush life Removable Bolt-on base NEMA C-face designs 115 or 230 volt input power ratings - 90 / 180 volt output Capable of Dynamic braking PWM or SCR type controller rated High Starting Torque
