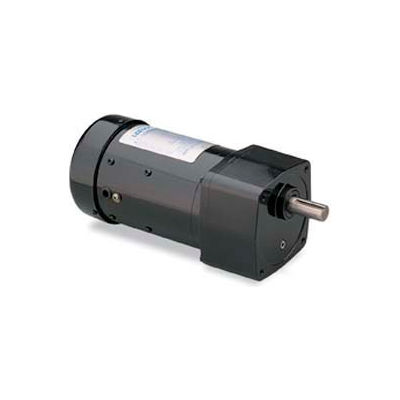

Leeson 096013.00, 1/3 HP, 58 RPM, 230/460V, 3-Phase, TEFC, PE350, 30:1 Ratio, 320 In-Lbs

Leeson 096013.00, 1/3 HP, 58 RPM, 230/460V, 3-Phase, TEFC, PE350, 30:1 Ratio, 320 In-Lbs

Item #: WBB588589

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$928.00 up to 49% OFF

Price: $484.95

Save $24.25 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $484.95 ea.
  • Buy 3+ $469.95 ea.

Quantity

Customers Also Viewed

Leeson 096013.00, 1/3 HP, 58 RPM, 230/460V, 3-Phase, TEFC, PE350, 30:1 Ratio, 320 In-Lbs

Design Specifications:

  • Sub-FHP AC gearmotors.
  • Totally enclosed for continuous duty, general purpose applications.
  • All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz only.
  • Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support.
  • Precision machined gearing, hardened for maximum load capability.
  • All gearing designed and rated to AGMA
  • Class 9 standards and to withstand momentary shock overload of 200%.
  • Oversized output bearings for greater overhung load capacity and longer life.
  • High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit.
  • Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out.
  • Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBER096013.00
  • HORSEPOWER1/3
  • GEAR MOTOR RPM58
  • VOLTAGE230/460
  • PHASE3
  • HERTZ60
  • SERVICE FACTOR1
  • ENCLOSURETEFC
  • FL AMPS1.6/0.8
  • DUTYContinuous
  • INSULATION CLASSF
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLEPE353-42
  • OUTPUT TORQUE (IN-LBS)320
  • RATIO TO 130
  • SERIESPE350
  • ULYes
  • CSAYes
  • WEIGHT LBS30
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)300
  • AMBIENT TEMP C40
  • MODELC42T17FZ14
  • GEARHEAD / SHAFT TYPEParallel
  • HP RANGE1/3 to 3/8
