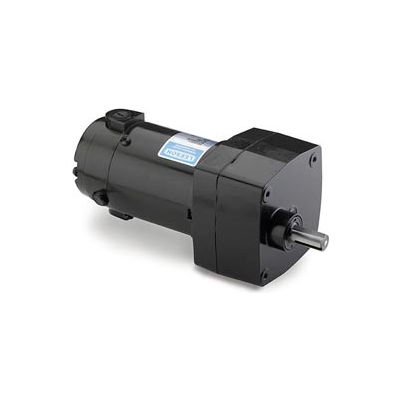

Leeson M1125037.00, 1/17 HP, 30 RPM, 180VDC, TENV, PZ, 60:1 Ratio, 100 In-Lbs

Leeson M1125037.00, 1/17 HP, 30 RPM, 180VDC, TENV, PZ, 60:1 Ratio, 100 In-Lbs

Item #: WBB234658

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$590.00 up to 45% OFF

Price: $321.95

Save $16.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Leeson M1125037.00, 1/17 HP, 30 RPM, 180VDC, TENV, PZ, 60:1 Ratio, 100 In-Lbs

DC Gearmotor with Parallel Shaft. 1/17HP, 30 RPM, Gear Ratio 60 to 1, Overhung Load 155 Pounds, 100 Lb. In. Full Load Torque, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 30 Frame, 180V, Name Plate Amps 0.36.

Totally enclosed, permanent magnet DC gearmotors, performance matched for continuous duty. Feature precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Conduit box not included with motor.

Designed for mounting at an angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail. The motor's stall torque could exceed recommended full load torques. If this service is anticipated, a current limiting device should be used. Overhung load capacities shown are at center of output shaft.


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • BRANDLeeson
  • MANUFACTURERS PART NUMBERM1125037.00
  • HORSEPOWER1/17
  • GEAR MOTOR RPM30
  • VOLTAGE180
  • SERVICE FACTOR1
  • ENCLOSURETENV
  • FL AMPS0.36
  • DUTYContinuous
  • INSULATION CLASSF
  • FRAME MATERIALSteel
  • TYPE & FRAME STYLEPZ5-30A
  • OUTPUT TORQUE (IN-LBS)100
  • RATIO TO 160
  • SERIESPZ
  • ULYes
  • CSAYes
  • WEIGHT LBS9
  • ROTATIONReversible
  • OVERHUNG LOAD (LBS.)155
  • AMBIENT TEMP C40
  • MODEL985.635
  • GEARHEAD / SHAFT TYPEParallel
  • HP RANGE1/20 to 1/16
  • RPM RANGE0-1000
  • ENCLOSURE TYPETotally Enclosed
  • is_motorYes
