Baldor-Reliance Motor CNM3539, .5HP, 1150RPM, 3PH, 60HZ, 56C, 3524M, TENV, F1

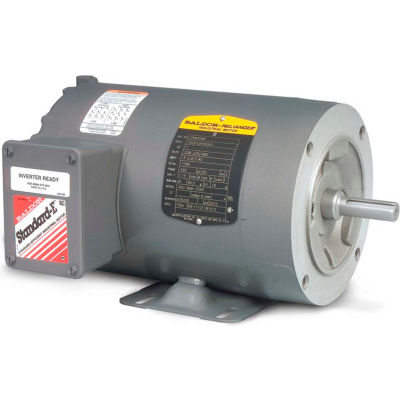

Actual product may differ from image shown

Baldor-Reliance Motor CNM3539, .5HP, 1150RPM, 3PH, 60HZ, 56C, 3524M, TENV, F1

Item #: WBB388148

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$576.00 up to 20% OFF

Price: $460.95

Save $23.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1150RPM,3PH,60HZ,56C,3524M,TENV,F1

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME56C
  • MOUNTINGRigid
  • NAMEPLATE RPM1150
  • PHASE3
  • MOTOR RPM 60Hz1150
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT39
  • RPM RANGE1101-1200
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY78.5
  • INSULATION CLASSF
  • FL AMPS2/1
  • KVA-CODEK
  • 208V AMPS2
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #CNM3539
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR54
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES12.07
  • POLES6
  • SPEC. NUMBER35E012Q207G2
