Baldor-Reliance Motor M3602, .75HP, 850RPM, 3PH, 60HZ, 184, 3535M, TEFC, F1

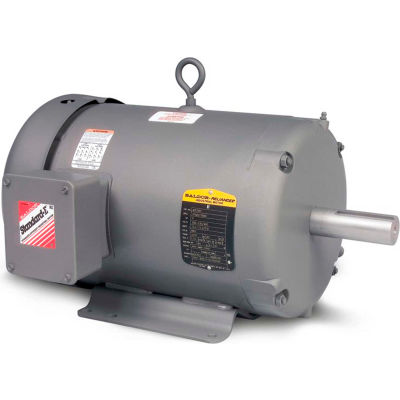

Actual product may differ from image shown

Baldor-Reliance Motor M3602, .75HP, 850RPM, 3PH, 60HZ, 184, 3535M, TEFC, F1

Item #: WBB391461

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$954.00 up to 5% OFF

Price: $904.00

$150.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $904.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,850RPM,3PH,60HZ,184,3535M,TEFC,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME184
  • MOUNTINGRigid
  • NAMEPLATE RPM850
  • PHASE3
  • MOTOR RPM 60Hz850
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT53
  • RPM RANGE0-1000
  • DESIGN CODEB
  • BEARING-DRIVE-END6206
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY65
  • INSULATION CLASSF
  • FL AMPS4.2-4/2
  • KVA-CODEK
  • 208V AMPS4.2
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #M3602
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR49
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES14.64
  • POLES8
  • SPEC. NUMBER35L108-5352
