Baldor-Reliance Motor VM3542-5, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1

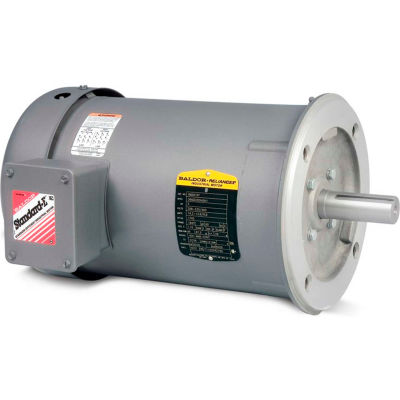

Actual product may differ from image shown

Baldor-Reliance Motor VM3542-5, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1

Item #: WBB391072

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$383.00 up to 26% OFF

Price: $281.95

Save $14.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1

Features:
  • 1.15 Service Factor
  • Positively locked drive end ball bearing
  • Dynamically balanced rotors
Typical Applications:
Pumps, fans, compressors, blowers, machine tools, conveyors and many applications requiring 575 volt power.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56C
  • MOUNTINGC-Face Footless
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • WEIGHT25
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY75.5
  • INSULATION CLASSB
  • FL AMPS1.2
  • KVA-CODEK
  • 208V AMPSN/A
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #VM3542-5
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR60
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES11.35
  • POLES4
  • SPEC. NUMBER34A63-908
