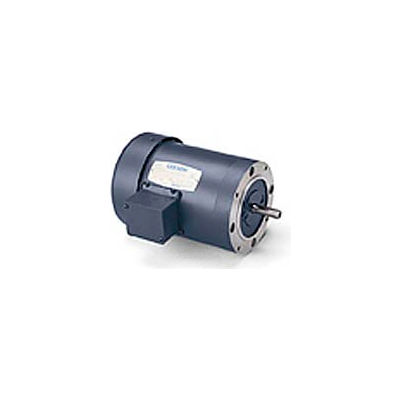

Leeson 110047.00, 0.75 HP, 1725 RPM, 208-230/460V, 56C, TEFC, C-Face Footless

Actual product may differ from image shown

Leeson 110047.00, 0.75 HP, 1725 RPM, 208-230/460V, 56C, TEFC, C-Face Footless

Item #: WBB221833

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$531.00 up to 45% OFF

Price: $302.95

Save $15.15 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $302.95 ea.
  • Buy 3+ $292.95 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 3/4HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, C Face Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 2.8/1.4, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 77, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
NEMA C face mount has machined face with a pilot on the shaft end which allows direct mounting with a pump or other direct coupled equipment. Bolts pass through mounted part to threaded hole in the motor face.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56C
  • MOUNTINGC-Face Footless
  • NAMEPLATE RPM1725
  • PHASE3
  • MOTOR RPM 60Hz1725
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY77
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH1-7/8
  • ROTATIONCCW/CW
  • WEIGHT24
  • ULY
  • CSAY
  • LEESON MODEL NO.C6T17FC1GG
  • UPC69172000766
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor VM3542, WEG .7518ES3EB56CFL, Marathon K255
  • BEARING-DRIVE-END6203
  • COMPATIBLE WITH/REPLACES - 2Baldor, VM3542, VNM3542
  • FL AMPS3-2.8/1.4
  • BRANDLeeson
  • MANUFACTURER PART #110047.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
