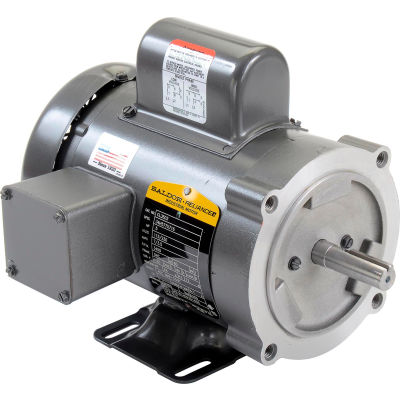

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Item #: WBB387897

Not Yet Rated

Ships same day.

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Adjustable Steel Motor Mounting Base, For NEMA Frames 56

    $17.25

  • WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

    $35.70

$335.00 up to 14% OFF

Price: $288.95

Save $14.45 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,3450RPM,1PH,60HZ,56C,3413L,TEFC,F1

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAME56C
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3450
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • WEIGHT24
  • RPM RANGE3001-3600
  • DESIGN CODEN
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY66
  • INSULATION CLASSB
  • FL AMPS7/3.5
  • KVA-CODEL
  • 208V AMPS4.1
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #CL3503
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR72
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES11.35
  • SERIAL-NUMBER--
  • POLES2
  • SPEC. NUMBER34H577X716
