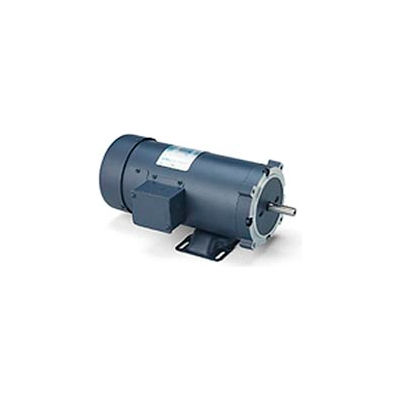

Leeson Motors DC Motor-1/2HP, 90V, 1750RPM, TEFC, Rigid C, NSS56C Frame

Leeson Motors DC Motor-1/2HP, 90V, 1750RPM, TEFC, Rigid C, NSS56C Frame

Item #: WBB236658

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

$785.00 up to 59% OFF

Price: $320.95

Save $16.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

DC Motor: 1/2HP, 1750 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, NSS56C Frame, Rigid C, 90V, Continuous duty.

High Voltage permanent magnet DC motors are typically used with an SCR controller in applications requiring adjustable speed and constant torque throughout the speed range. They are widely used in applications requiring dynamic braking or adjustable speed/reversing capabilities.

Features:
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable Bolt-on base
  • NEMA C-face designs
  • Capable of Dynamic braking
  • PWM or SCR type controller rated
  • High Starting Torque

Click here to see our full selection of Motor Controls and Drives.

Compatibility
AO Smith/Magnetek: D032 | D033(Leeson motor is totally enclosed fan-cooled ) | D041 | D042(Leeson motor is totally enclosed fan-cooled )
Baldor: CDP3330(Leeson motor is totally enclosed fan-cooled )
GE: D275 | D285
Grainger/Dayton: 2M168 | 2M168D | 2M503 | 3VF70

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAMENSS56C
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM1750
  • VOLTAGE90
  • DUTYContinuous
  • EFFICIENCY TYPEStandard
  • WEIGHT25
  • LEESON MODEL NO.C42D17FK1C
  • CATALOG NO.098000.00
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor CDP3330, Marathon Z606
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
  • BRANDLeeson
  • MANUFACTURER PART #098000.00
  • is_motorYes
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: August 14, 2013

    Save over Grainger
    Your review:
    Had nice cross reference on a dayton motor. All told, $180 less.
Product Q & A

There are 1 questions and 1 answer for this product.

  • I have a Grovhac mixer with this motor on it. The mixer is variable speed. Can I swap the motors out and have the new one variable speed?

    Question Asked By: Rich, February 01, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Rich, Yes you can and to make it variable speed you would need the DC controller which is Global model number B587917. Thank you for your interest in our product!
