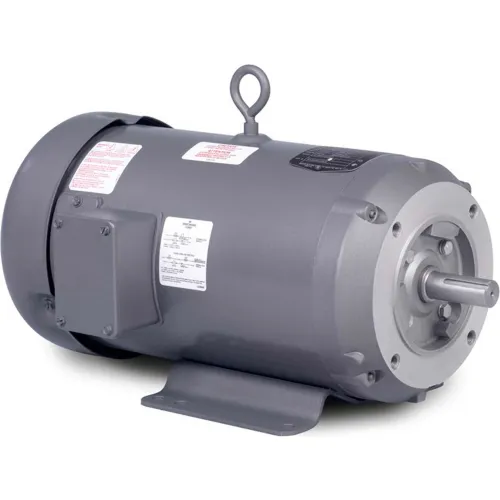

Baldor-Reliance Motor CD7503, 3HP, 1750RPM, DC, 215C, 7544D, TEFC, F1

Baldor-Reliance Motor, .75HP,1750RPM,DC,56C,3528D,TEFC,F1 Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Baldor-Reliance Motor, 2HP,1750RPM,DC,184C,3646D,TEFC,F1 Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Baldor-Reliance Motor, 1.5HP,1750RPM,DC,145TC,3536P,TEFC,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Baldor-Reliance Motor, 3HP,1750RPM,DC,184TC,3649P,TEFC,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Baldor-Reliance Motor, 1HP,1750RPM,DC,56C,3435P,TEFC,F1 Features: NEMA C-face with removable base Tach adaptable Class F insulation Double sealed ball bearings UL and CSA recognized 3300P motors are TENV,all others are TEFC No dual mounting base holes on 33P type Typical Applications: Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.
