Baldor-Reliance Motor EM3546T-8, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, TEFC, F1

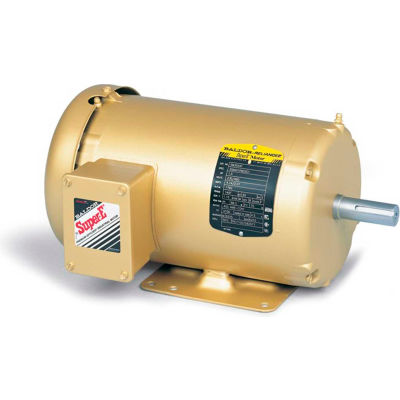

Actual product may differ from image shown

Baldor-Reliance Motor EM3546T-8, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, TEFC, F1

Item #: WBB390054

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$641.00 up to 19% OFF

Price: $520.00

$86.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $520.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143T,3524M,TEFC,F1

Features:
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME143T
  • MOUNTINGRigid
  • NAMEPLATE RPM1760
  • PHASE3
  • MOTOR RPM 60Hz1760
  • VOLTAGE200
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT39
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY85.5
  • INSULATION CLASSF
  • FL AMPS3.5
  • KVA-CODEL
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #EM3546T-8
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR71
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES13.31
  • POLES4
  • SPEC. NUMBER35AA001M848G1
