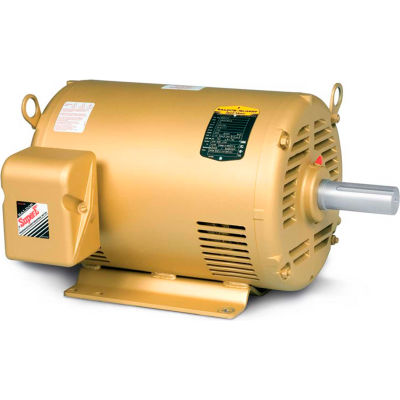

Baldor-Reliance General Purpose Motor, 230/460 V, 100 HP, 1780 RPM, 3 PH, 404T, OPSB

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 230/460 V, 100 HP, 1780 RPM, 3 PH, 404T, OPSB

Item #: WBB909048

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $7,676.00

$1,279.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,676.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 230/460 V, 100 HP, 1780 RPM, 3 PH, 404T, OPSB

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty
Application(s)
  • Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER100
  • ENCLOSUREOPSB
  • FRAME404T
  • MOUNTINGRigid
  • NAMEPLATE RPM1780
  • PHASE3
  • MOTOR RPM 60Hz1780
  • VOLTAGE230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • RPM RANGE1701-1800
  • DESIGN CODEA
  • BEARING-DRIVE-END6316
  • BEARING-OPP-DRIVE-END6312
  • FL EFFICIENCY95.4
  • INSULATION CLASSF
  • FL AMPS236/118
  • KVA-CODEH
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #EM2555T-12
  • is_motorYes
  • GREASEPOLYREX EM
  • ENCLOSURE TYPEOpen/Drip Proof
  • BALDOR CATALOG NUMBEREM2555T-12
  • POWER-FACTOR83
  • C-DIMENSION INCHES36.97
  • TYPEGeneral Purpose Motor
  • SPEC. NUMBER44E192W316
