Leeson 170045.60, Premium Eff., 75 HP, 3575 RPM, 208-230/460V, 365TS, TEFC, Rigid

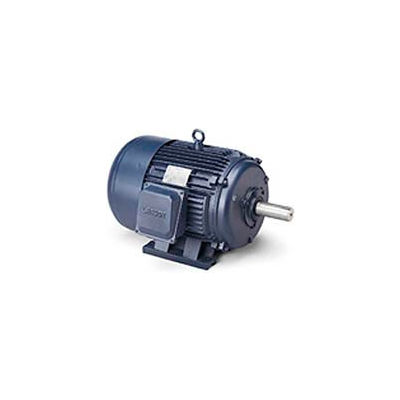

Actual product may differ from image shown

Leeson 170045.60, Premium Eff., 75 HP, 3575 RPM, 208-230/460V, 365TS, TEFC, Rigid

Item #: WBB222276

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$13,474.00 up to 50% OFF

Price: $6,718.00

$1,119.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $6,718.00 or save 5% on purchase.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 75/60HP, 3575/2970 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 365 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 190-169/84.5&157/78.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 94.5, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER75
  • ENCLOSURETEFC
  • FRAME365TS
  • MOUNTINGRigid
  • NAMEPLATE RPM3575
  • PHASE3
  • MOTOR RPM 60Hz3575
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY94.5
  • AMBIENT TEMP C40
  • ROTATIONCCW/CW
  • WEIGHT800
  • ULY
  • CSAY
  • LEESON MODEL NO.C365T34FB3FF
  • UPC69172002805
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor ECP4313T-4, WEG 07536ET3E365TS, Marathon E991A
  • COMPATIBLE WITH/REPLACES - 3Grainger/Dayton, 4FM62, 4N948, 5N276, 5N836
  • BEARING-DRIVE-END6313
  • COMPATIBLE WITH/REPLACES - 2TechTop GR3-CI-TF-365TS-2-BR-D-75
  • FL AMPS190-169/84.5
  • BRANDLeeson
  • MANUFACTURER PART #170045.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
