Leeson 116759.00, Premium Eff., 1.5 HP, 1750 RPM, 208-230/460V, 56, TEFC, Rigid

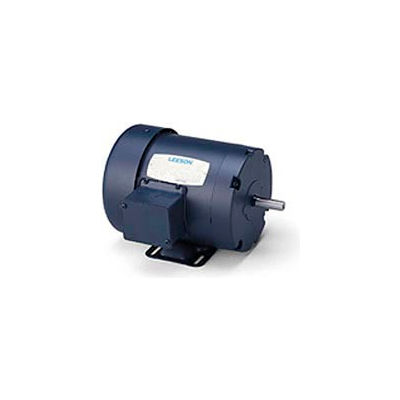

Actual product may differ from image shown

Leeson 116759.00, Premium Eff., 1.5 HP, 1750 RPM, 208-230/460V, 56, TEFC, Rigid

Item #: WBB222479

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 56C
  • 145TC
  • 56
  • 145T

56

$826.00 up to 51% OFF

Price: $416.95

Save $20.85 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $416.95 ea.
  • Buy 3+ $402.95 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 1.5HP, 1750/1450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 4.6-4.8/2.4&5/2.5, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 86.5, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 1-7/8", Shaft Diameter 5/8".

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEFC
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM1750
  • PHASE3
  • MOTOR RPM 60Hz1750
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY86.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH1-7/8
  • ROTATIONCCW/CW
  • WEIGHT34
  • ULY
  • CSAY
  • LEESON MODEL NO.C6T17FB150BB
  • UPC69172034826
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor EM3554
  • BEARING-DRIVE-END6203
  • FL AMPS4.6-4.8/2.4
  • BRANDLeeson
  • MANUFACTURER PART #116759.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
