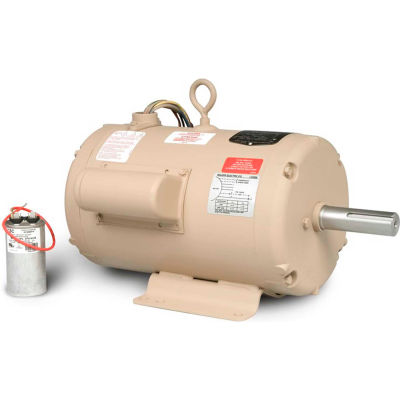

Baldor-Reliance Motor UCLE153, 1.5-3HP, 3450RPM, 1PH, 60HZ, 145TZ, 3532LC, TE

Actual product may differ from image shown

Baldor-Reliance Motor UCLE153, 1.5-3HP, 3450RPM, 1PH, 60HZ, 145TZ, 3532LC, TE

Item #: WBB390827

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$950.00 up to 20% OFF

Price: $759.00

$126.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $759.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1.5-3HP,3450RPM,1PH,60HZ,145TZ,3532LC,TE

Features:
  • Shaft 3/4 longer than NEMA standard
  • Shaft keyed, drilled and tapped with internal 1/4-20 tap 1 deep
  • 1.00 Service Factor
  • Thermostats
  • Epoxy paint
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEAO
  • FRAME145TZ
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • VOLTAGE230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT52
  • RPM RANGE3001-3600
  • 208V AMPS13.7
  • KVA-CODEG
  • is_motorYes
  • POWER-FACTOR95
  • FL EFFICIENCY85.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER35T928T138G1
  • BEARING-DRIVE-END6206
  • DESIGN CODEL
  • OPPOSITE END BEARING SIZE6203
  • DOE-CODE--
  • FL AMPS12.5
  • MANUFACTURER PART #UCLE153
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES14.25
  • POLES2
  • INSULATION CLASSF
