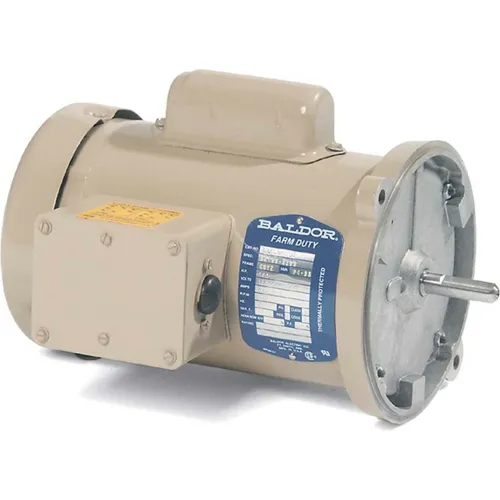

Baldor-Reliance Motor ANFL3514M, 1.5HP, 1725RPM, 1PH, 60HZ, 56YZ, 3532LC, TEFC

Actual product may differ from image shown

Baldor-Reliance Motor ANFL3514M, 1.5HP, 1725RPM, 1PH, 60HZ, 56YZ, 3532LC, TEFC

Item #: WBB388747

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,165.00 up to 39% OFF

Price: $1,320.00

$220.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor AFM3529, 1HP, 3450RPM, 3PH, 60HZ, 56Z, 3416M, TEAO, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Baldor-Reliance Motor FDL3504M, .5HP, 1725RPM, 1PH, 60HZ, 56, 3421L, TEFC, F1, N

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

US Motors Farm Duty, 3 HP, 1-Phase, 1740 RPM Motor, FD3CM2K18

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1.5HP,1725RPM,1PH,60HZ,56YZ,3532LC,TEFC

Features:
  • Mechanical protection of centrifugal switch to prevent damage to motor in case of overspeed
  • Manual reset thermal protection mounted in oversize conduit box
  • Farm Duty epoxy paint and thermal cover protect motor from harsh environments
  • Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly
Typical Applications:
Poultry feed auger drive systems.

Weights & Dimensions

  • Dimension C 14.43 in
  • Opposite End Bearing Size 6203
  • Weight 47

Product Details

  • Power Factor 73
  • Mounting Location No Mounting
  • Bearing Drive End 6203
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange OIL BURNER FLANGE
  • Ambient Temperature 40 °C
  • KVA Code J
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Frame 56YZ
  • Service Factor 1
  • Horsepower 1-1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Amps @ 208V 9 A
  • Full Load Efficiency 75.5
  • Brand Baldor-Reliance
  • Full Load Amps 18/9 FLA
  • Design Code L
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number ANFL3514M
