Baldor-Reliance Motor ECP3665T-4, 5HP, 1750RPM, 3PH, 60HZ, L184T, TEFC, FOOT

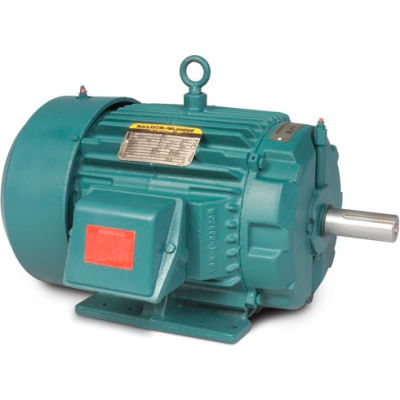

Actual product may differ from image shown

Baldor-Reliance Motor ECP3665T-4, 5HP, 1750RPM, 3PH, 60HZ, L184T, TEFC, FOOT

Item #: WBB388318

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,260.00 up to 20% OFF

Price: $1,007.00

$167.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,007.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,L184T,TEFC,FOOT,

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME184T
  • BRANDBaldor-Reliance
  • RPM1750
  • PHASE3
  • CLASS INSULATIONF
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • RPM RANGE1701-1800
  • FL AMPS6.6
  • MANUFACTURER PART #ECP3665T-4
  • WEIGHT LBS.119
  • is_motoryes
  • FL EFFICIENCY89.5
  • C-DIMENSION INCHES15.93
