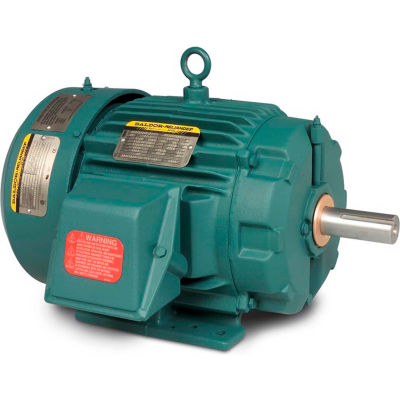

Baldor-Reliance Motor ECP63774TR-4, 10HP, 1765RPM, 3PH, 60HZ, L215T, TEFC, FOOT

Actual product may differ from image shown

Baldor-Reliance Motor ECP63774TR-4, 10HP, 1765RPM, 3PH, 60HZ, L215T, TEFC, FOOT

Item #: WBB390450

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,302.00 up to 20% OFF

Price: $1,839.00

$306.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,839.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1765RPM,3PH,60HZ,L215T,TEFC,FOOT,

Features:
  • NEMA premium efficiency
  • Motors meet IEEE 841 specifications for the chemical industry and incorporate roller bearings on 210 frames and larger for heavy belt loads
  • VBX / VBXX Inpro bearing isolators on both ends
  • Shaft up requires removing plug in upper end and reversing drain
  • Motors have RTV sealed end bracket-to-frame fits and epoxy coated rotor and stator
  • Motors are inverter ready
  • 5-year warranty
Typical Applications:
Petroleum, chemical and other industries with belt driven heat exchangers requiring premium efficient motors designed to API 661 standards of 40,000 hours bearing life.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAMEL215T
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • POWER-FACTOR82.7
  • FL EFFICIENCY91.7
  • SPEC. NUMBERP21G3400
  • CODEH
  • DESIGN CODEB
  • FL AMPS12.3
  • MANUFACTURER PART #ECP63774TR-4
  • WEIGHT LBS.225
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES20.19
  • POLES4
  • INSULATION CLASSF
