Baldor-Reliance Motor ECP84308T-5, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

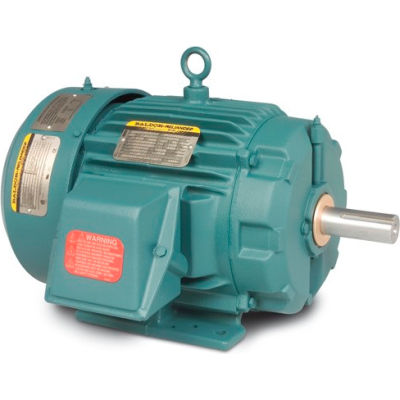

Actual product may differ from image shown

Baldor-Reliance Motor ECP84308T-5, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Item #: WBB390507

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$9,401.00 up to 20% OFF

Price: $7,507.00

$1,251.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,507.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 40HP,1190RPM,3PH,60HZ,364T,TEFC,FOOT,

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Product Specifications

  • HORSEPOWER40
  • ENCLOSURETEFC
  • FRAME364T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1190
  • RPM1190
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6313
  • DUTYContinuous
  • RPM RANGE1101-1200
  • BRG-ODE-AFBMA65BC03J30X
  • # OF ROTOR BARS55
  • EFFICIENCY-293.6
  • KVA-CODEG
  • is_motorYes
  • EFFICIENCY-3--
  • POWER-FACTOR80
  • FL EFFICIENCY94.1
  • EFFICIENCY-194.3
  • MANUFACTURING-NUMBER--
  • MAX. KVAR12
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBERP36G5244
  • # OF STATOR SLOTS72
  • BEARING-DRIVE-END6313
  • DESIGN CODEB
  • BRG-DE-AFBMA65BC03J30X
  • NL AMPS14.2
  • IEEE-TEST90DBA
  • FL AMPS39.5
  • WARRANTY--
  • WINDING RESISTANCE0.23696
  • RESISTANCE--
  • MANUFACTURER PART #ECP84308T-5
  • WEIGHT LBS.865
  • TYPEP
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES33.44
  • POLES6
  • INSULATION CLASSF
