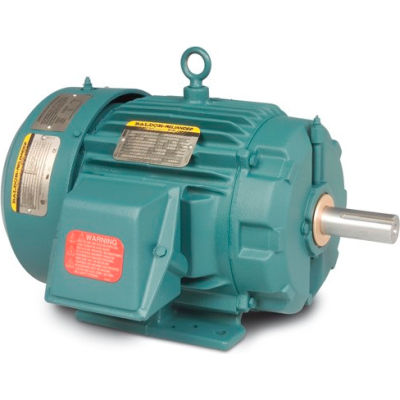

Baldor-Reliance Motor ECP84314T-4, 60HP, 1780RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Actual product may differ from image shown

Baldor-Reliance Motor ECP84314T-4, 60HP, 1780RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Item #: WBB390164

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$9,113.00 up to 20% OFF

Price: $7,276.00

$1,212.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,276.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 60HP,1780RPM,3PH,60HZ,364T,TEFC,FOOT,

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Product Specifications

  • HORSEPOWER60
  • ENCLOSURETEFC
  • FRAME364T
  • BRANDBaldor-Reliance
  • RPM1780
  • PHASE3
  • CLASS INSULATIONF
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • RPM RANGE1701-1800
  • FL AMPS68
  • MANUFACTURER PART #ECP84314T-4
  • WEIGHT LBS.913
  • is_motoryes
  • FL EFFICIENCY95
  • C-DIMENSION INCHES33.49
