Baldor-Reliance Motor VECP83770T-4, 7.50HP, 1760RPM, 3PH, 60HZ, L213TC, TEFC, FOOT

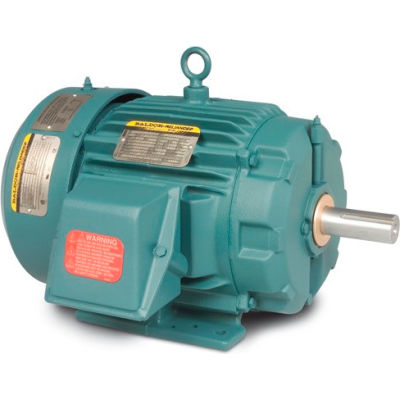

Actual product may differ from image shown

Baldor-Reliance Motor VECP83770T-4, 7.50HP, 1760RPM, 3PH, 60HZ, L213TC, TEFC, FOOT

Item #: WBB391078

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,818.00 up to 20% OFF

Price: $1,452.00

$242.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,452.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 7.50HP,1760RPM,3PH,60HZ,L213TC,TEFC,FOOT

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Product Specifications

  • HORSEPOWER7 1/2
  • ENCLOSURETEFC
  • FRAME213TC
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6206
  • RPM RANGE1701-1800
  • # OF ROTOR BARS28
  • KVA-CODEH
  • is_motorYes
  • POWER-FACTOR81
  • FL EFFICIENCY91.7
  • TEMP. CODET3
  • MAX. KVAR1.5
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBER07J620X814G1
  • # OF STATOR SLOTS36
  • BEARING-DRIVE-END6307
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS9.5
  • MAX. SPACE HEATER TEMP.N/A
  • MANUFACTURER PART #VECP83770T-4
  • SPACE-HEATER-AMPSN/A
  • WEIGHT LBS.205
  • SPACE-HEATER-VOLTSN/A
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES20.94
  • POLES4
  • INSULATION CLASSF
