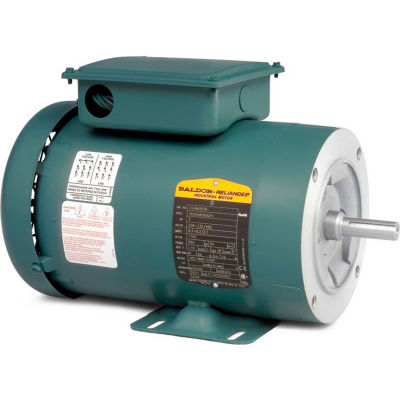

Baldor-Reliance Motor CUHL3519, 1HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, TEFC, F3, N

Baldor-Reliance Motor CUHL3519, 1HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, TEFC, F3, N

Item #: WBB388339

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$526.00 up to 20% OFF

Price: $420.95

Save $21.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F3,N

Features:
  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT35
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35X061X945G1
  • 208V AMPS7
  • KVA-CODEK
  • POWER-FACTOR73
  • FL EFFICIENCY67
  • SERIAL-NUMBER--
  • BEARING-DRIVE-END6205
  • DESIGN CODEL
  • BALDOR CATALOG NUMBERCUHL3519
  • DOE-CODE--
  • FL AMPS12.8/7-6.4
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES13.22
  • POLES4
  • INSULATION CLASSF
