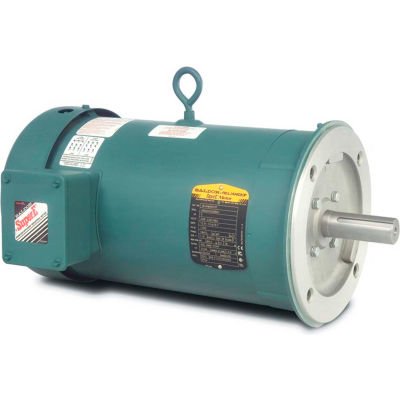

Baldor-Reliance Motor VEUHM3611T, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1

Baldor-Reliance Motor VEUHM3611T, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1

Item #: WBB391231

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$785.00 up to 20% OFF

Price: $628.00

$104.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $628.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,3628M,TEFC,F1

Features:
  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME182TC
  • BRANDBaldor-Reliance
  • MOUNTINGNo Mounting
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6205
  • WEIGHT70
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER36A003Y434G7
  • 208V AMPS8.6
  • KVA-CODEK
  • POWER-FACTOR77
  • FL EFFICIENCY89.5
  • SERIAL-NUMBER--
  • BEARING-DRIVE-END6206
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERVEUHM3611T
  • DOE-CODE--
  • FL AMPS8.6-8.2/4.1
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES16.55
  • POLES4
  • INSULATION CLASSF
