Baldor-Reliance Unit Handling Motor, VEBM3558T-5D, 3 PH, 2 HP, 575 V, 1755 RPM, TEFC, 145TC Frame

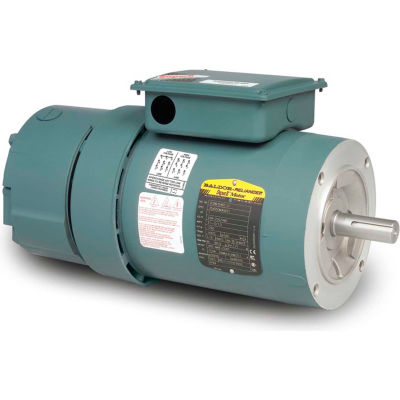

Actual product may differ from image shown

Baldor-Reliance Unit Handling Motor, VEBM3558T-5D, 3 PH, 2 HP, 575 V, 1755 RPM, TEFC, 145TC Frame

Item #: WBB909801

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,201.00

$200.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,201.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Unit Handling Motor, VEBM3558T-5D, 3 PH, 2 HP, 575 V, 1755 RPM, TEFC, 145TC Frame

Baldor-Reliance's line of Unit handling motors are designed for a wide variety of applications in baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door openers. These motors are available from stock in ratings of ½ HP thru 10HP (56 thru 215T frames) with or without Dodge D-Series brakes. Features include an oversized top mounted conduit box on 56 & 140T frames that provide easy access for making connections. Footed frames include slotted feet for easy mounting.

Features
  • UL/CSA recognized and CE certified
  • Dodge D Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
Application(s)
  • Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEFC
  • FRAME145TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1755
  • RPM1755
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6205
  • DUTYContinuous
  • MANUFACTURERS PART NUMBERVEBM3558T-5D
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35X050M840G1
  • 208V AMPS--
  • KVA-CODEL
  • POWER-FACTOR73
  • FL EFFICIENCY86.5
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERVEBM3558T-5D
  • DOE-CODE010A
  • FL AMPS2.4
  • TYPEUnit Handling Motor
  • C-DIMENSION INCHES18.23
  • INSULATION CLASSF
